High output current can source or sink 200mA
-
Adjustable duty cycle
-
No. of Pins:8
-
Operating Temperature Range:0°C to +70°C
-
Frequency: 500KHz
-
IC Generic Number:555
-
Leaded Process Compatible:Yes
-
Supply Voltage Max:18V
-
Supply Current Max:15A

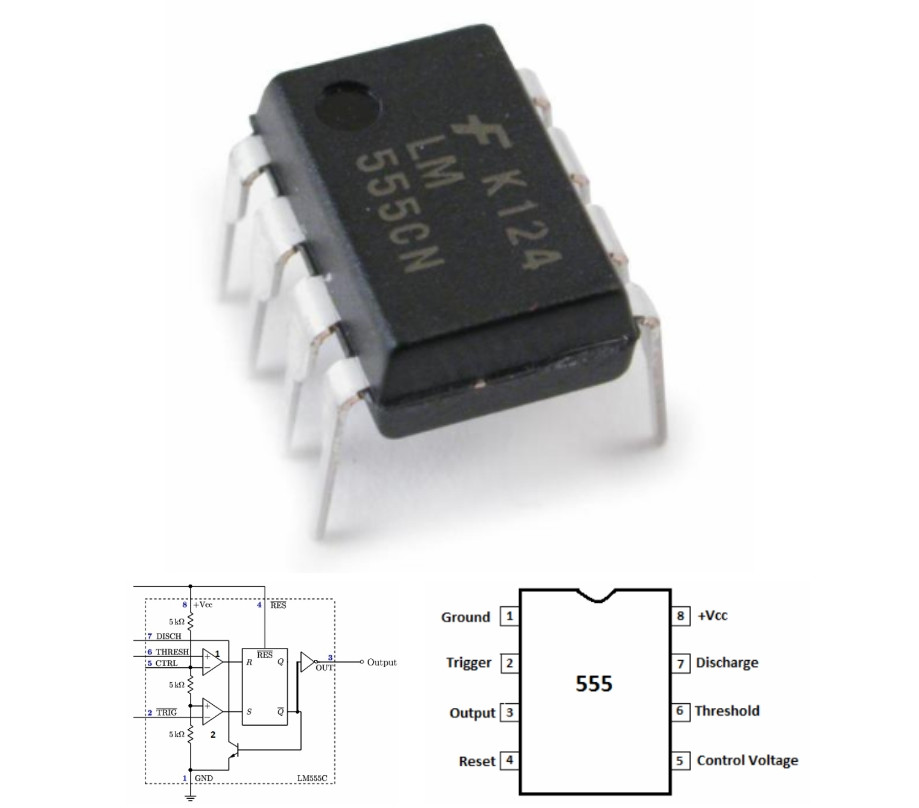

The NE555 monolithic timing circuit is a highly stable controller capable of producing accurate time adelays or oscillation. In the time adelay mode of operation, the time is precisely controlled by one external resistor and capacitor. For a stable operation as an oscillator, the free running frequency and the duty cycle are both accurately controlled with two external resistors and one capacitor. The circuit may be triggered and reset on falling waveforms, and the output structure can source or sink up to 200mA.
Features:
Low turn off time
Maximum operating frequency greater than 500kHz
Timing from microseconds to hours
Operates in both astable and monostable modes
High output current can source or sink 200mA
Adjustable duty cycle
TTL compatible
Temperature stability of 0.005% per °C
Timer IC
No. of Pins:8
Operating Temperature Range:0°C to +70°C
Frequency: 500KHz
IC Generic Number:555
Leaded Process Compatible:Yes
Supply Voltage Max:18V
Supply Current Max:15A
