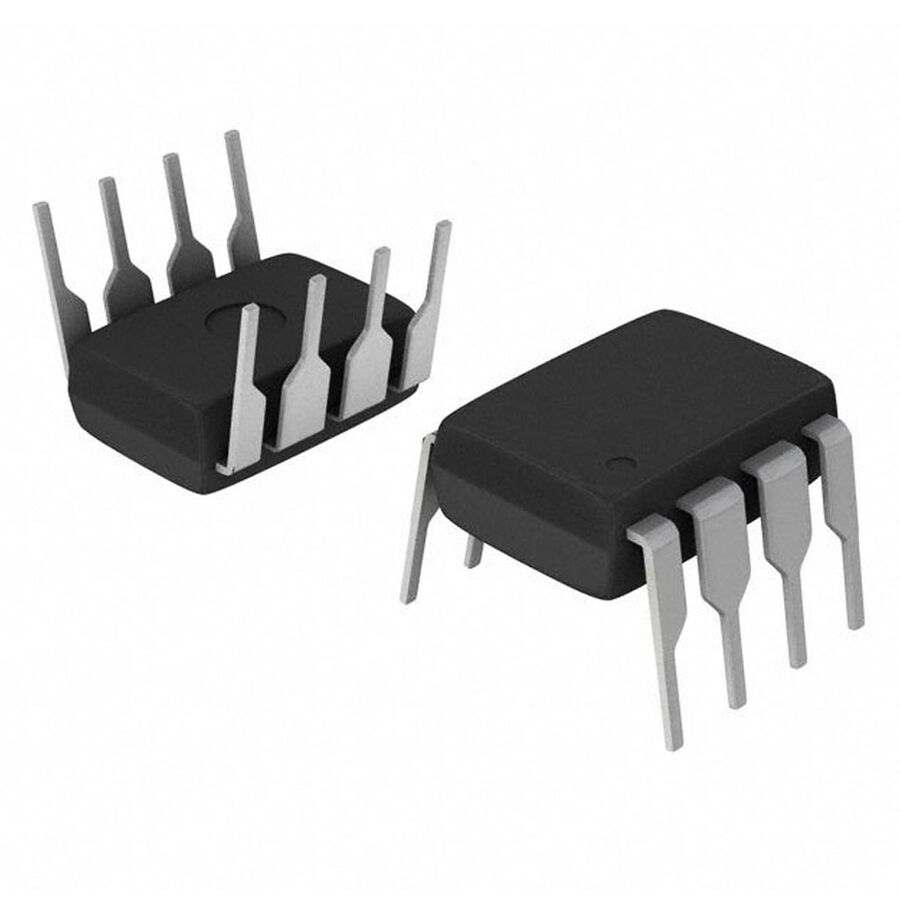

IRS2011 SOIC-8 High And Low Side Driver ICs Description:
Number of Outputs
2
Part Family
IRS2011
Number of Pins
8
Supply Voltage (DC)
20.0 V (max)
Case / Package / Footprint
DIP-8
Output Voltage
220 V
Output Current
1.00 kA (min)
RoHS
Compliant
Features
• Floating channel designed for bootstrap operation
• Fully operational up to +200 V
• Tolerant to negative transient voltage, dV/dt immune
• Gate drive supply range from 10 V to 20 V
• Independent low-side and high-side channels
• Input logic HIN/LIN active high
• Undervoltage lockout for both channels
• 3.3 V and 5 V input logic compatible
• CMOS Schmitt-triggered inputs with pull-down
• Matched propagation adelay for both channels
Applications
• Audio Class D amplifiers
• High power DC-DC SMPS converters
• DC motor drive
UPS inverters
