BC547C NPN Bipolar Transistor

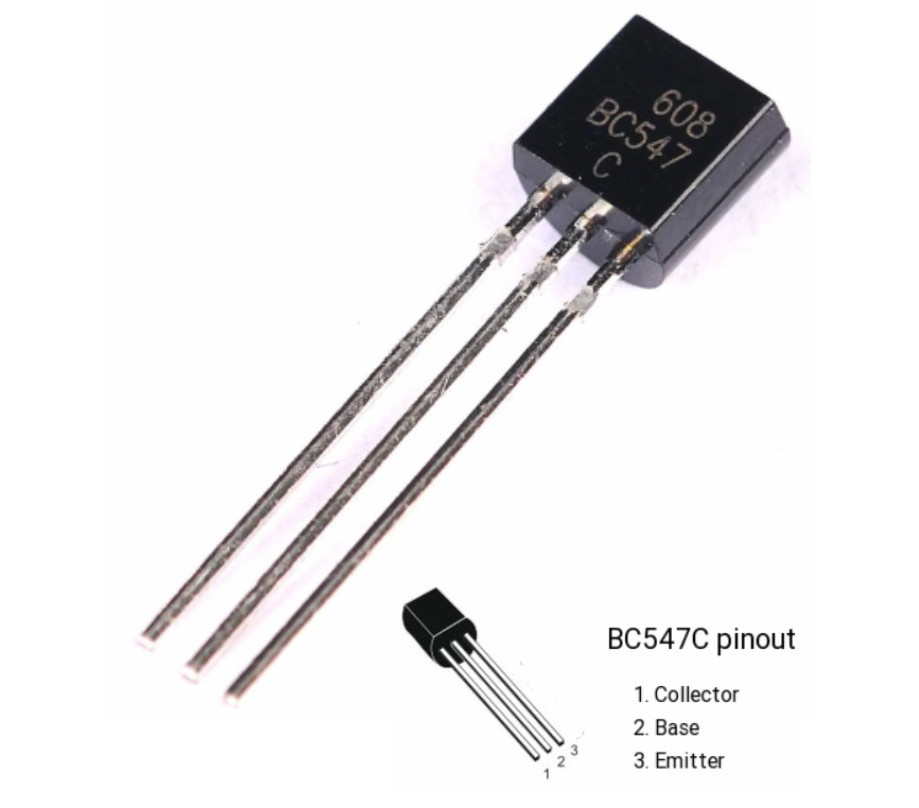

The BC547C is manufactured in a plastic TO-92 case. When looking at the flat side with the leads pointed downward, the three leads emerging from the transistor are, from left to right, the collector, base, and emitter leads.
The complementary p-n-p transistor to the BC547C is the BC557C
Type - NPN
Collector-Emitter Voltage: 45 V
Collector-Base Voltage: 50 V
Emitter-Base Voltage: 6 V
Collector Current: 0.1 A
Collector Dissipation - 0.5 W
DC Current Gain (hfe) - 420 to 800
Transition Frequency - 150 MHz
Noise Figure - 2 dB
Operating and Storage Junction Temperature Range -65 to +150 °C
Package - TO-92
