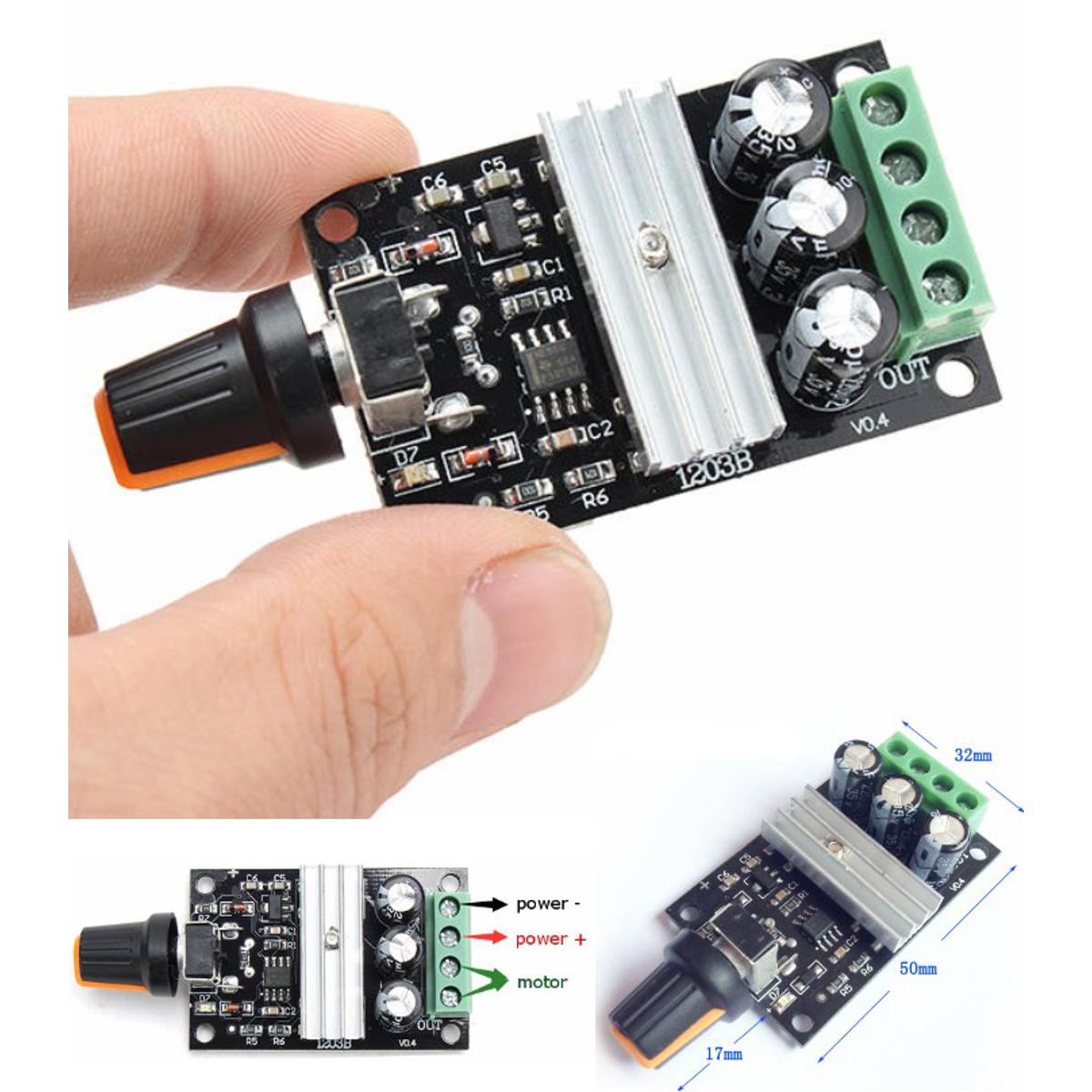

PWM DC Motor Speed Controller Speed Switch Module 6V/12V/24V/28V 3A 1203B
Description:
This DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse- Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%.
The motor speed controller can easily provide a continuous current of 3A to your DC motor or other DC load.
Operating instruction:
Connect your DC motor (or DC load) to the motor terminals as indicated on the wiring diagram of DC Motor.
Connect a voltage of 10V-36V DC to the circuit making sure of the correct polarity of the connection. Note that the voltage applied to the motor will be supply voltage applied to the circuit. It is recommended to add an appropriately rated fuse inline with the positive supply in order to protect the circuit from any possible short circuits.
You can now control the speed of the motor through potentiometer.
Input voltage: DC6V-28V
Maximum current: 3A
Potentiometer
Size: 32mm * 50mm * 15mm
