With pin high-voltage
Operating temperature :0-80

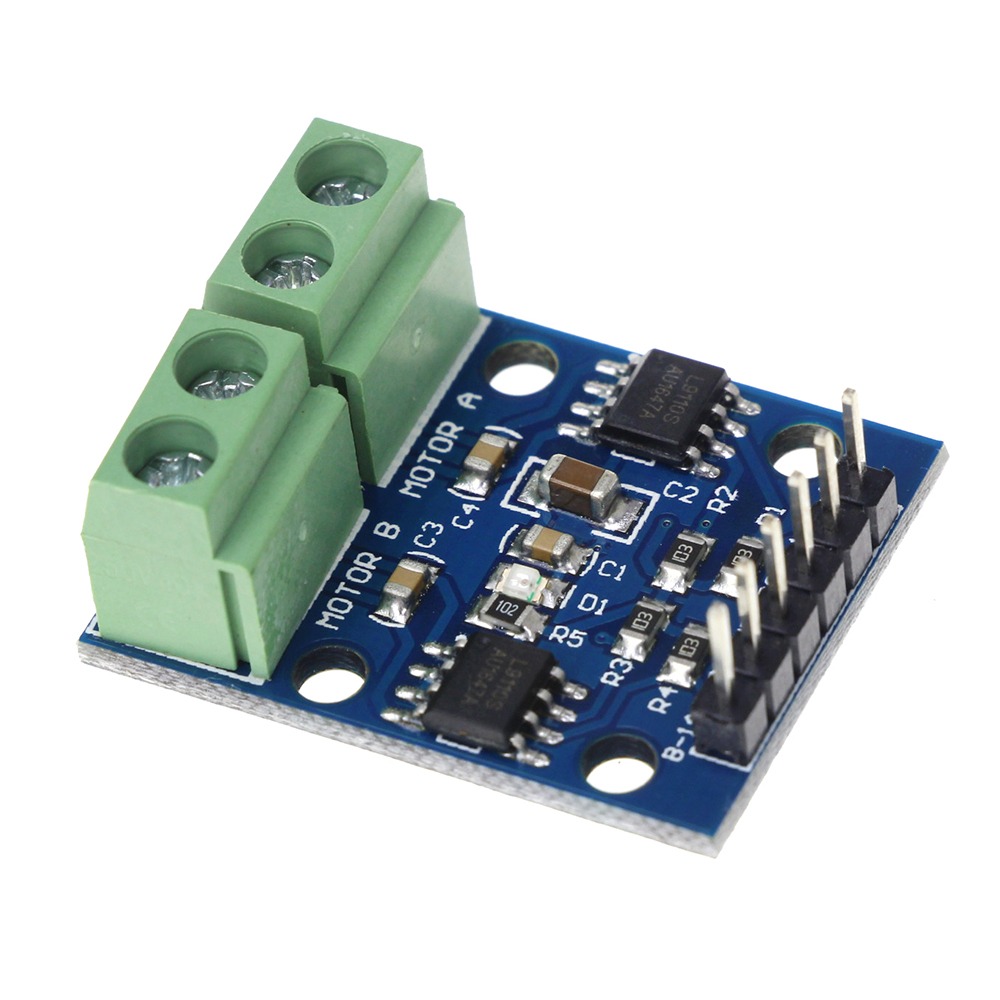

Onboard 2 L9110S motor control chip
Module can drive two DC motors or a 4-wire two-phase stepper motor
Product Feature
Low quiescent current
Wide supply voltage range: 2.5V-12V
800mA per channel continuous power output capability
Lower saturation voltage
TTL / CMOS compatible output level can be directly connected to CPU
Output built-in clamp diodes for inductive load
Control and drive integrated into a single IC
