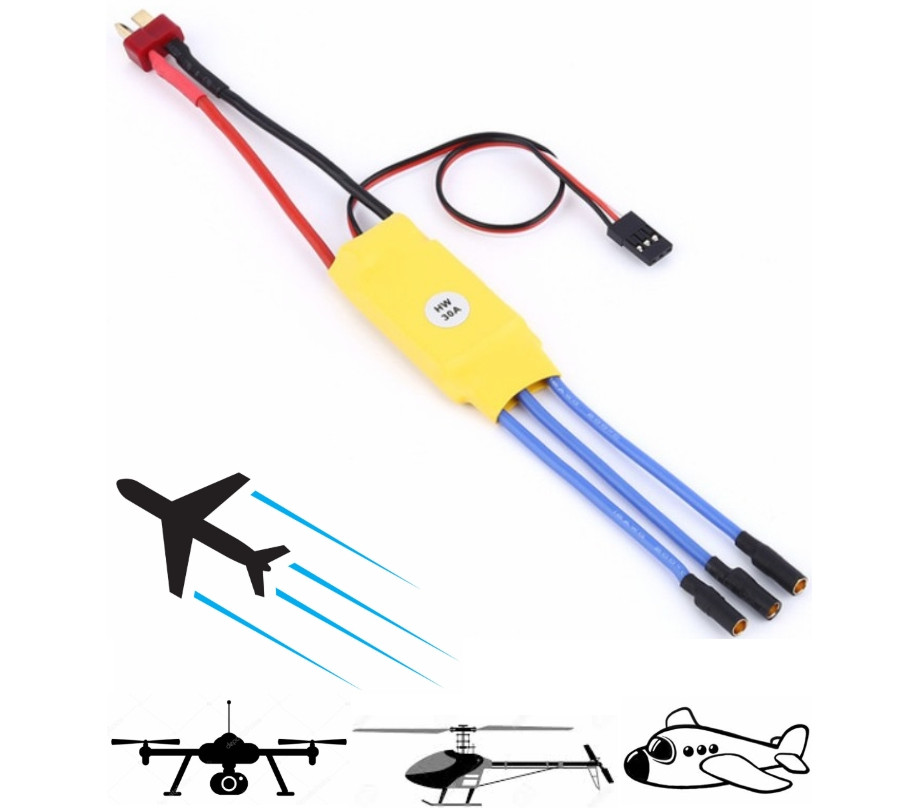

30A: an instant 45 A, 40A continuous 10 seconds
-
Size: 30A-45 X 24 X 8mm
-
voltage range: 4 V-16V
-
battery number :4-12 NIMH 2-3LIPO (4LIPO BEC does not allow the use of output)
-
BEC output: 30A, stressed: 5 V 3A. 2LIPO 4-5 micro-steering gear 3 LIPO 3-4 micro-steering gear /
-
Protection features: automatic selection 2-3 LIPO were protected voltage is 6 V/9V; automatically elected NIMH, each protected voltage is 0.8 V;
-
security started, throttle position does not prohibit started temperature protection, the surface temperature of 110 degrees downtime; out of control
-
protection, without Signal one second after the shutdown.
-
Property Description: speed limit, within a 2 to as high as 300,000 to 12 to 50,000, to a very, very foreign to the 14 to 42,000. 8KHz PWM control,
-
the use of speed control curve. Automatically adapt to the accelerator, more suitable for remote control devices.
-
The use of BEC, MCU separate power supply, a more stable work.
