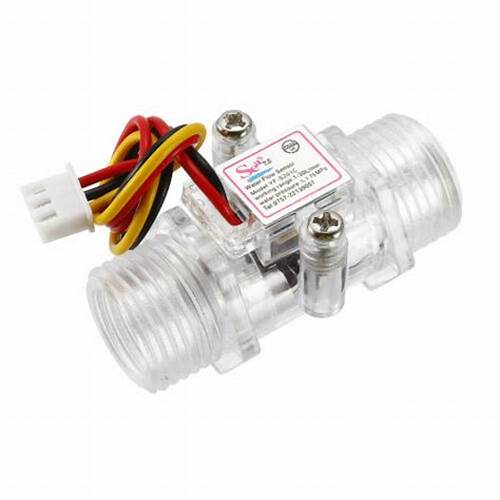

 YF-S201C crystal clear water flow meter sensor



14 viewed per hour

 YF-S201C crystal clear water flow meter sensor

Product Details
  • SKU: WFMC3-D101
  • Brand: Megatronics.pk
  • Stock: 24pcs

Product Pricing
PKR1100.00
  • Trust


Product Description

Specification:



Model: YF-S201C

Color: Transparent

The Lowest Rated Working Voltage: DC4.5 5V-24V

Maximum Operating Current: 15 mA (DC 5V)

Working Voltage Range: DC 5~18 V

Load Capacity: = 10 mA (DC 5V)

Work Temperature: = 80 ?



Work Humidity Range: 35%~90%RH (No Frost)

Allowing Pressure: Pressure 1.75Mpa

Storage Temperature: -25~+80?

Save Humidity: 25%~95%RH

Flow Range :1-30L / min

External Threads: Approx. 1/2"

Cord Connection:

Red (IN): Positive(+)

Yellow (OUT): Signal output

Black (GND): Negative(-)

NOTE:

1.Non-violent Shock And Chemical Erosion.

2.Non-throwing Or Hitting.

3.Mounted Vertically, Should Not Exceed 5 Degrees Inclination.

4.Temperature Of Medium Should Not Exceed 120 ?

1 Exterior Product logo clear, accurate and consistent with the requirements

2 Water resistant > 1.75MPa

3 Working voltage range DC  5 to 15 V

4 Insulation resistance > 100MO

5 Accuracy ? 1 to 30L \ MIN +- 3%

6 Flow pulse characteristics (5 x Q) Q = L / Min +- 3%

7 Output pulse high level > DC 4.7V (input voltage DC 5V)

8 Output pulse low <DC 0.5V (input voltage DC 5V)

9 Output pulse duty cycle 50% +-10%
