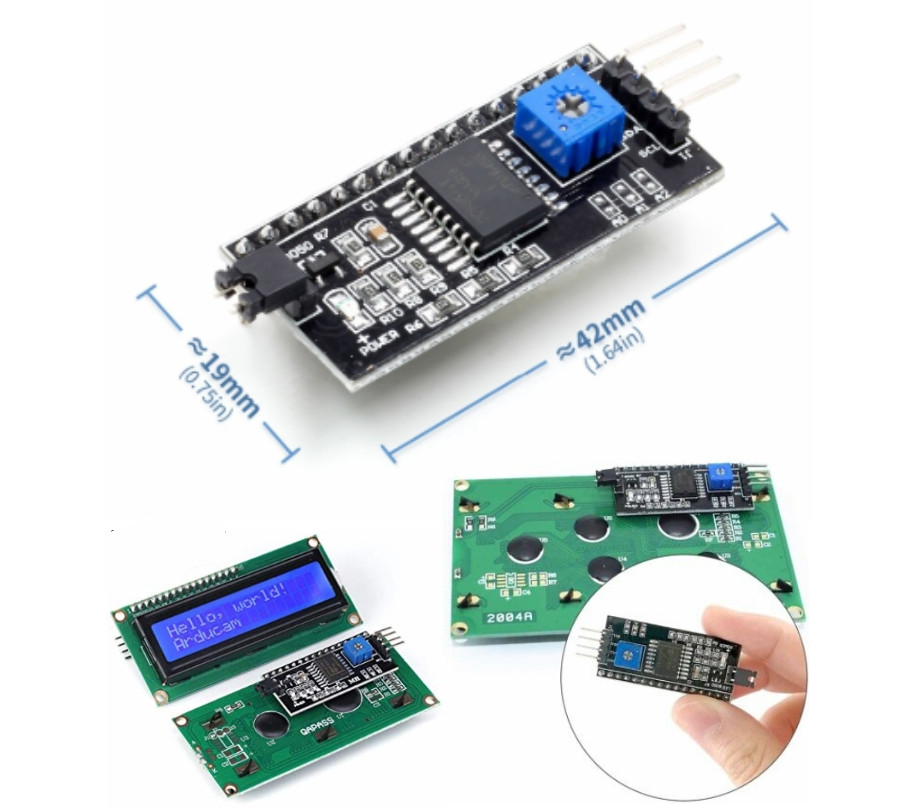

 IIC/I2C/TWI Serial interface board For 16x2 LCD screen 1602 2004



11 viewed per hour

 IIC/I2C/TWI Serial interface board For 16x2 LCD screen 1602 2004

Product Details
  • SKU: PI2C-B125F11B
  • Brand: Megatronics.pk
  • Stock: 112pcs

Product Pricing
PKR150.00
  • Trust


Product Description

Features: This is another great IIC/I2C/TWI/SPI Serial Interface. As the pin resources of Arduino controller is limited, your project may be not able to use normal LCD shield after connected with a certain quantity of Sensors & IMU or SD card. However, with this I2C interface module, you will be able to realize data display via only 2 wires. If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project. I2C Address: 0X20~0X27 (the original address is 0X20,you can change it yourself) Supply voltage: 5V the backlight and contrast is adjusted by potentiometer Come with 2 IIC interface, which can be connected by Dupont Line or IIC dedicated cable I2C Address: 0x27 (I2C Address: 0X20~0X27 (the original address is 0X27,you can change it yourself) Compatible for 1602 LCD Weight:5g Size:5.5x2.3x1.4cm
