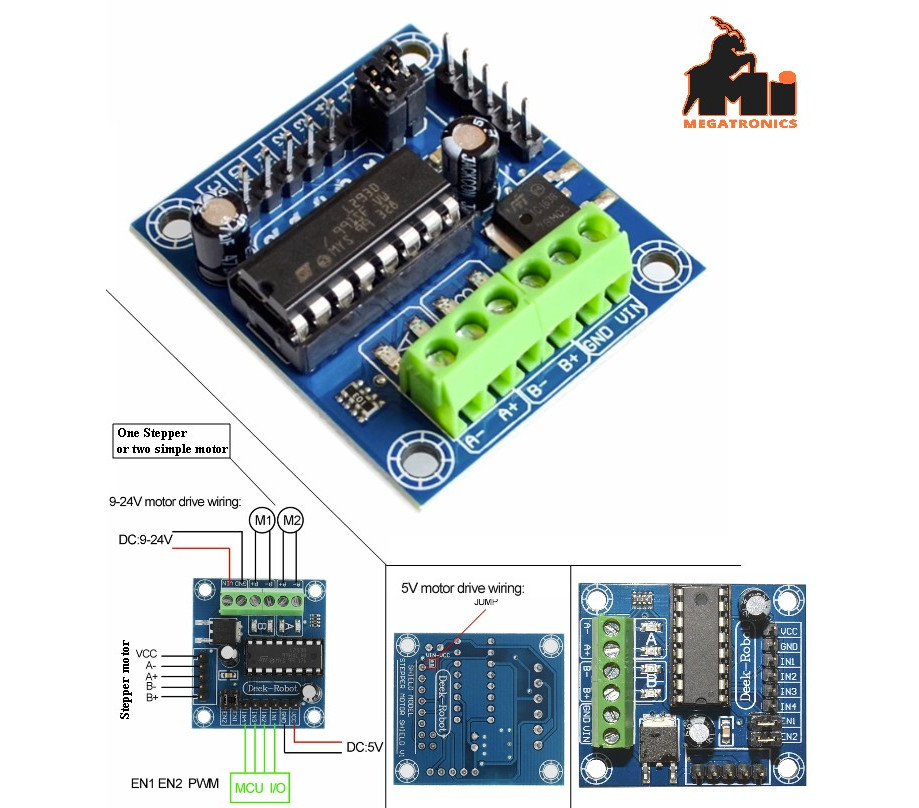

Mini L293D motor driver expansion board dual H-bridge 4.5 - 25V 600mA
Small Motor Driver Module with the popular L293D Driver IC
Extreme Wide Operating Voltage Range 4.5 to 36V
Peak Current per Channel is 2A
Compatible with all Microcontrollers with 5V Logic Level
The Device is a mnolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoides, DC
and stepping motors) and switching power transistors .
To simplify use as two bridges each pair of channels is equipped with an enable input.
A separate supply input is provided for the logic, allowing operation at a lower voltage and internal clamp diodes are included.
This device is suitable for use in switching applications at frequencies up to 5 kHz.
