MC8B Specification:
-

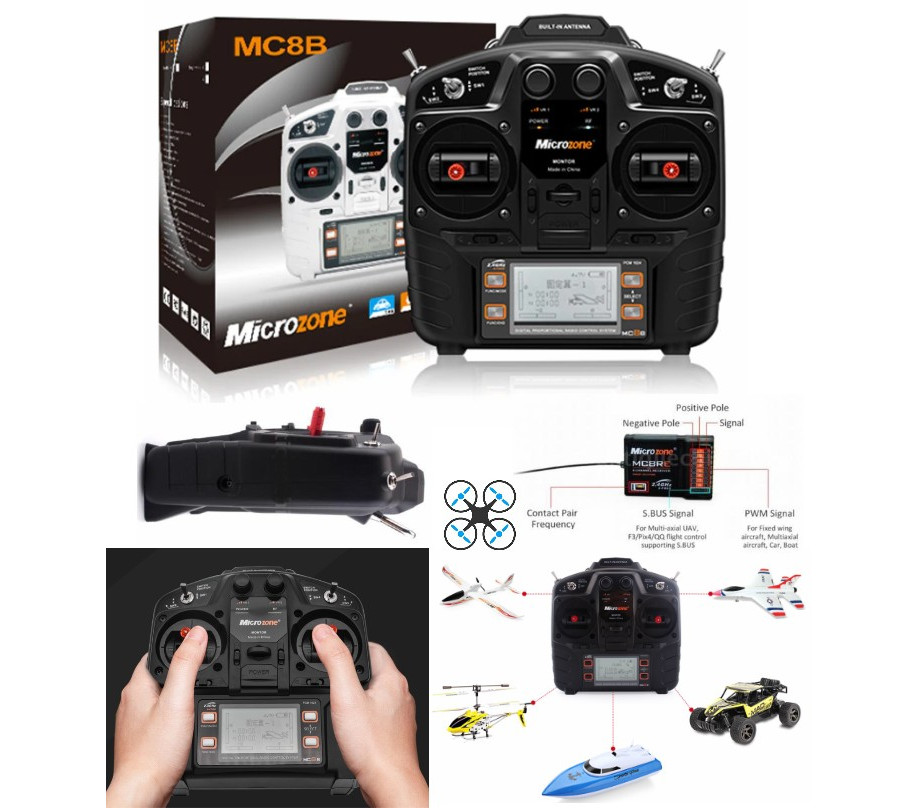

Product name: MC8B 2.4G 8CH Transmitter
-
Size: 180 * 170 * 50mm
-
Weight: 0.53kg
-
Frequency: 2.4GHz
-
RF range: 2405MHz---2479MHz
-
RF power: less than 100mW
-
Channel bandswidth: 500KHz
-
Working voltage: 4.2-6V
-
Modulation mode: FSK
-
Sensitivity: 1024
-
Signal output: 8 PWM signals and 1 SBUS signals
-
Power: 4 * 6V 1.5AA (Not include)
-
Analog and external power supply: YES
-
Adopt the latest FHSS mode in line with European standards
-
Certificate: FCC, CE_RED
-
Low voltage alarm mode: LED indicator and buzzer alarm at the same time (according to battery type in the system)
-
Internal software support: CH5---CH8, arbitrary replacement of settings and CH1--CH8 signal detection
-
Internal software support: M1 and M2 throttle swap (double return), can set the flight time, the main screen to build a lock, a factory reset
-
MC8RE Specification:
-
Product name: MC8RE Receiver
-
Antenna length: 110mm
-
Output channel: 8 PWM signal channels and 1 SBUS signal channel
-
Reception frequency: 2401MHZ-2479MHZ
-
Application: MC8A, MC8B remote control, fixed wing models, UAV, helicopter models, trams and tanker models, ship models.
-
Size: 42 * 28 * 12mm
-
Weight: 12g
-
Package information:
-
Package size: 22 * 21.5 * 10.5cm / 8.66 * 8.46 * 4.13in
-
Package weight: 662g / 1.46lb
-
Gift box package
