Hopping frequency is high Speed.
WFLY 2.4G adopted hopping frequency to DSSS technology and the hopping
speed is 4 MS one time.
• 2.4G receiver outputs high reliable PWM signal to digital servo.
Oscilloscope can observe the details with nano second. But other brand
receiver PWM signal is not so reliable compared with WFLY 2.4G.
• High 4096 resolution, high response( with WFT09S and WFT08S
transmitter).
• Recognize PPM, PCMS, 4096 PCMS modulation automatically.
• With hopping DSSS, WFLY 2.4G is high reliable working with 50 transmitter
together.
• Specifications:

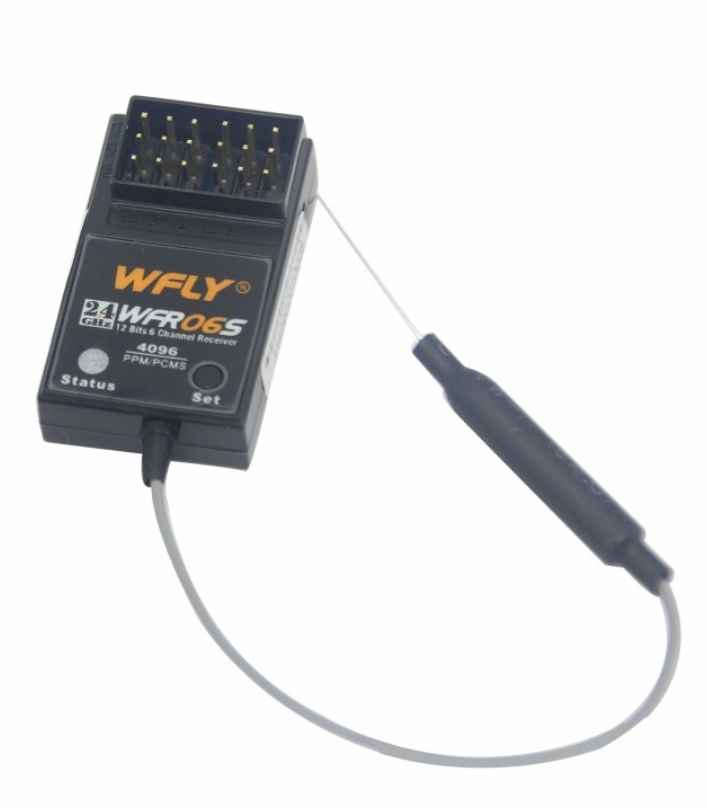

2.4GHz receiver (WFR06S) 6 channel 2.4GHz Receiver
Receiver Model: WFR06S
Use in:airplane, helicopter, glider, car, boat
Band:2.400GHz-2.4830GHz ( varies with different country and region)
Receive sensitivity:-97dBm
Fail safe ,quick recover signal
Modulation:PPM/PCMS 1024/PCMS 4096
Power:4.8-6V
Dimension:44.8×27.9×16.39mm
Weight:14.8g
Range test in ground: more than 700M
