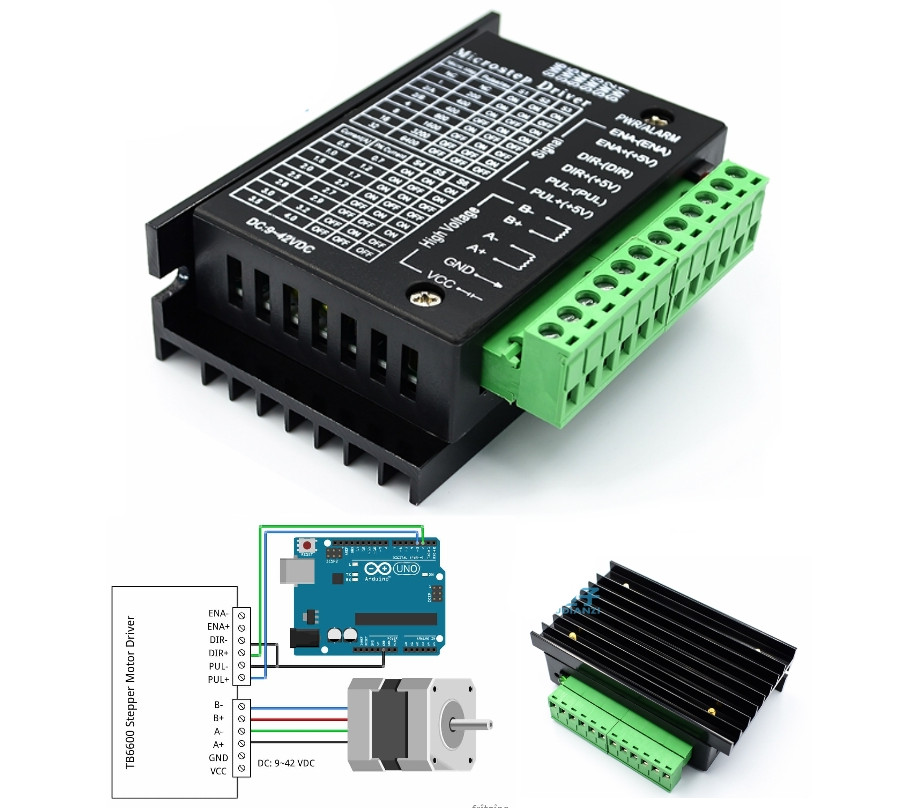

TB6600 Stepper Motor Driver Controller 9-42VDC 4A Micro-Step for 57BYG250H MotorDescriptionThis driver is the upgraded version TB6600, heightening segment to 32 subdivision, suitable for high segmentation applications. For step motor: 42, 57, 86 type 2 phase 4 phase (4 / 6 / 8 line). The maximum output current is 4.0A (eight optional). Up to 32 segments of six kinds of sub-modes available.Features - 9V-40V DC power supply. H-bridge bipolar constant phase flow driver.- Eight kinds of output current for options with the maximum of 4.0A.- Up to 32 segments of six kinds of sub-modes available.- The input signal high-speed photoelectric isolation.- Standard common anode single pulse interface.- Offline maintainence function.- Semi-enclosed chassis can adapt to a more demanding environment.- Provide energy-saving semiautomatic current lock function.- Built-in thermal protection and over-current protection.- Can control 2 phase stepper motor forward and reverse rotation, with 1-2, W1 -2 , 2W1 -2, 4W1 -2 phase excitation mode.- Suitable for small and medium automatic devices with CNC control, such as X-Y-Z tables, labeling machines, laser cutting, engraving, machines and pick-place devices.Specification - Color: Mainly black- Material: Metal, Plastic, Electric Components- Compatible step motor: 42, 57, 86 type 2 phase 4 phase (4 / 6 / 8 line)- Size: Approx. 9.5 x 5.6 x 3.5 cm/ 3.78 x 2.2 x 1.37 (L x W x H)- Power supply: 9 ~ 40V DC- Input voltage: DC 12 ~ 48V- Operating temperature: -10 to 45 ? c- Storage temperature: -40 to 70 ? c- Max Drive current: 4A- Chopping frequency: 20KHZ- Insulating material: Epoxy resin (EP)package includes 1pcs TB6600 Driver module
