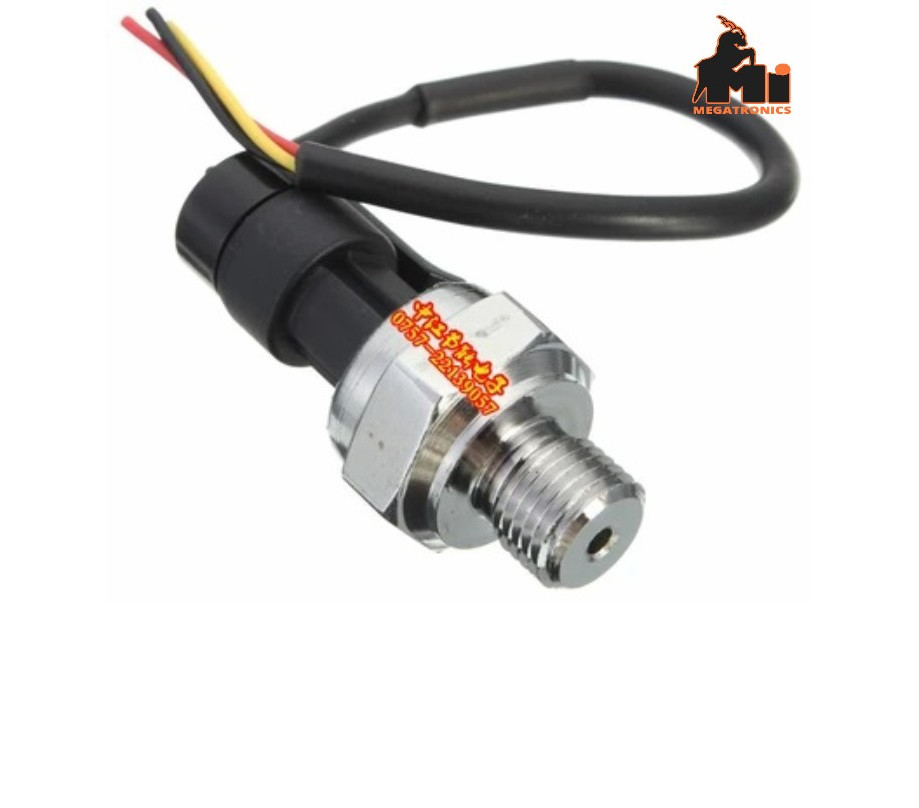

HK1100C Air Water Oil pressure sensor 5mpa
Working Voltage: 5.0 VDC
Output Voltage: 0.5-4.5 VDC
Working Current: <=10 mA
Working Pressure Range: 0-5 MPa
The Biggest Pressure: 5 MPa
Destroy Pressure: 8.0 MPa
Working TEMP. Range: 0-85 Celsius Degree
Storage Temperature Range: 0-85 Celsius Degree
Measuring Error: - 1.0 %FSO
Temperature Range Error: - 3.0 %FSO
Response Time: <=2.0 ms
Features
1.Suitable for wall hanging furnace, gas furnace, gas storage, etc all kinds of hydraulic, pneumatic pressure measurement
2.Suitable for civil use product batch
3.Static accuracy: - 1.0% FS
4.Pressure range 0-5 MPa
5.Wide range of temperature compensation
6.Medium for non-corrosive gas, water, oil, etc
7.Stainless Steel Shell
