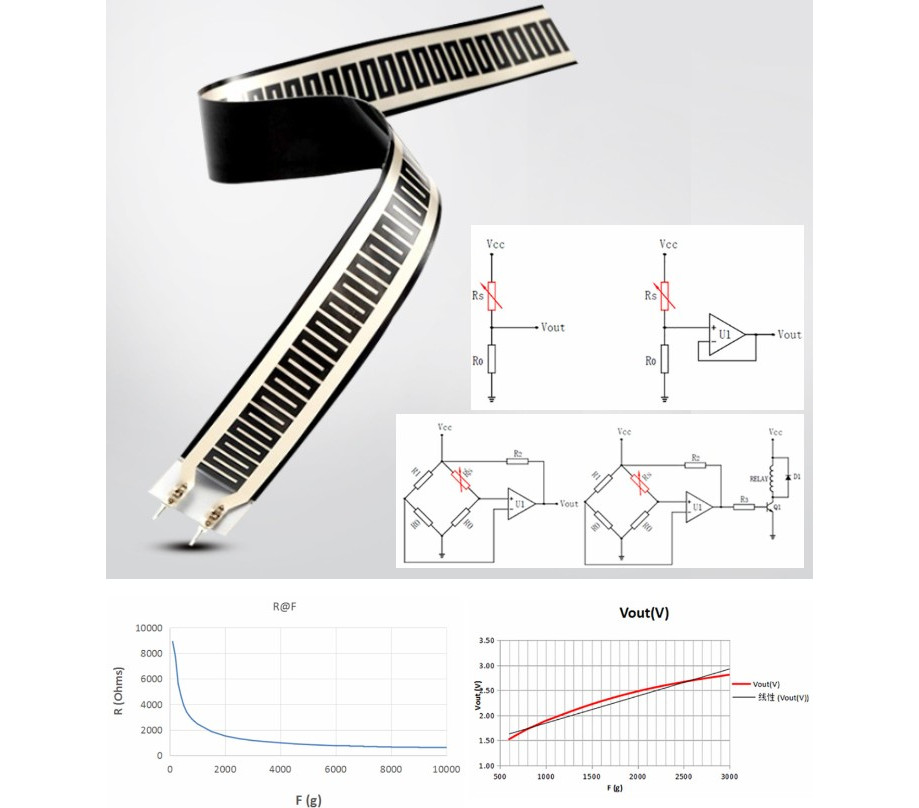

RP-L-110 FSR force sensitive resistor pressure sensor resistive film pressure sensor flexible force-sensitive resistor
RP-L-110 resistive film pressure sensor flexible force-sensitive resistor
Function:
1. The film pressure sensor is flexible and slim, characterized by low energy consumption and fast response.
2. Flexible pressure sensor can sense weak dynamic or static forces.
3. The top layer is a flexible film and a pressure sensitive layer folded on the film.
4. The pressure detection range is 20g to 10 kg or more.
5. Precise detection, fast response, long life.
Specification:
Item type: film pressure sensor Pressure
detection range: 20g ~ 10kg or more
Trigger force: 20g, trigger when resistance <200kO default
length: 10cm overall length 11.5cm
Thickness: 0.35mm
Shape: sheet, flexible
No trigger resistance:> 10MO
Activation time: <0.01 s
Hysteresis : + 10%, (RF + -RF -) / FR +, force 1000g
Response time: <10 ms
EMI electromagnetic interference: not generated
ESD electrostatic discharge: not sensitive to ESD
Drift: <5%, load 2.5 kg, 24 H
