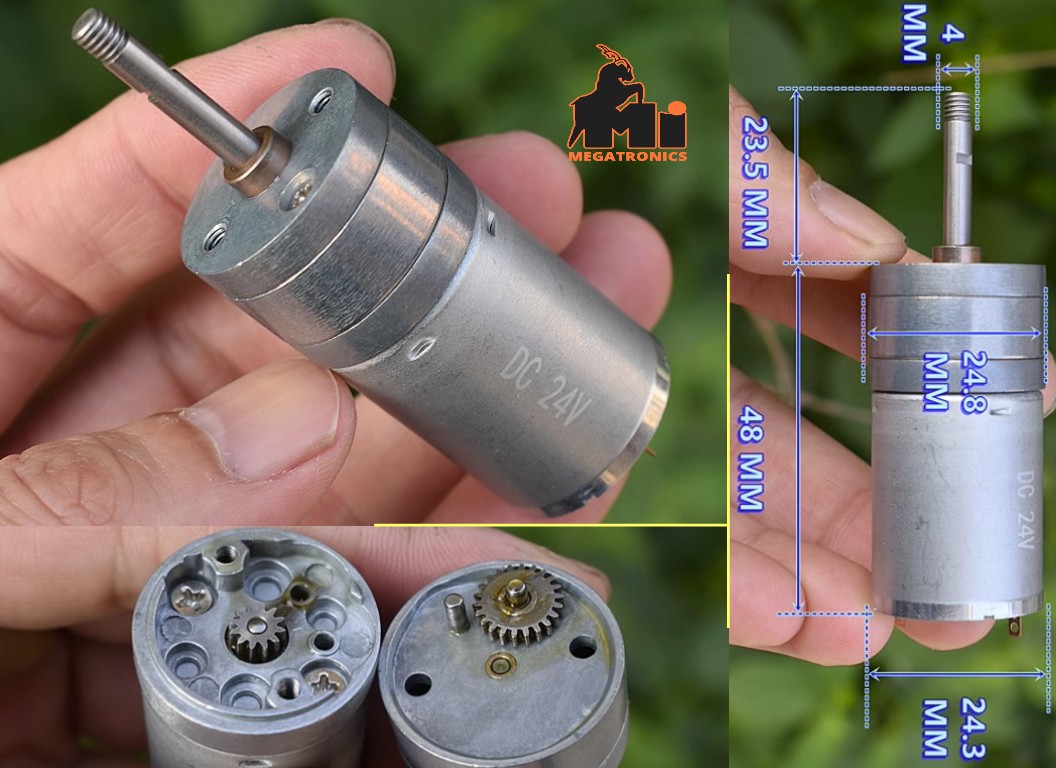

ZGA25R-370 24V 1000rpm 1:8 ratio full metal gear motor long shaft carbon brush magnetic tile 370 motor
The brand new micro 370 reduction motor in stock is model ZGA25R-370.
The outer diameter of the reduction box is about 25 MM, and the gearbox is all-metal.
The motor uses a 370 motor with carbon brushes and magnetic tiles.
The reduction ratio is very small, estimated to be around 1:8.
The applicable voltage is DC24V, and the speed is about 1000 RPM, which is a high-speed motor among gear motors.
Gear motor weight: approximately 84 grams
Voltage: DC24V
No-load current: 80mA
No-load speed: about 1000 RPM
After powering on the motor for a test run, the motor made a soft sound, rotated very quickly, and had decent power.
However, because the gear reduction ratio was very small (estimated to be only about 1:8), it cannot be compared in power with the 370 motor with a larger gear reduction ratio.
