The DY-AP3001 is a high-power mono audio module. It outputs a single-channel audio signal.
It has a built-in amplifier module, so it can be connected directly to a speaker. It's ideal for DIY speakers and transponders.
Features:
1. Wide working voltage range
2. Applicable multiple type speakers
3. Support enable/disable output
Parameters:
1.Product Name: DY-AP3001 Digital Amplifier Module
2.Model: DY-AP3001
3.Working voltage: DC 8V-24V
4.Working mode: Class D
5.Channel: Mono
6.Input: Audio input
7.Output power:
7.1.Output power 30W at 16V 4ohm
7.2.Output power 20W at 12V 4ohm
7.3.Output power 10W at 12V 8ohm
7.4.Output power 15W at 16V 8ohm
7.5.Output power 25W at 24V 8ohm
8.Pairing Speaker(30W@300V):
8.1. 4ohm@8V@16V
8.2. 8ohm@8V@24V
9.Working Temperature: -40? to 85?
10.Working Humidity: 0% to 95%RH
11.Module Size: 26 x 22 x 10mm
Use Steps:

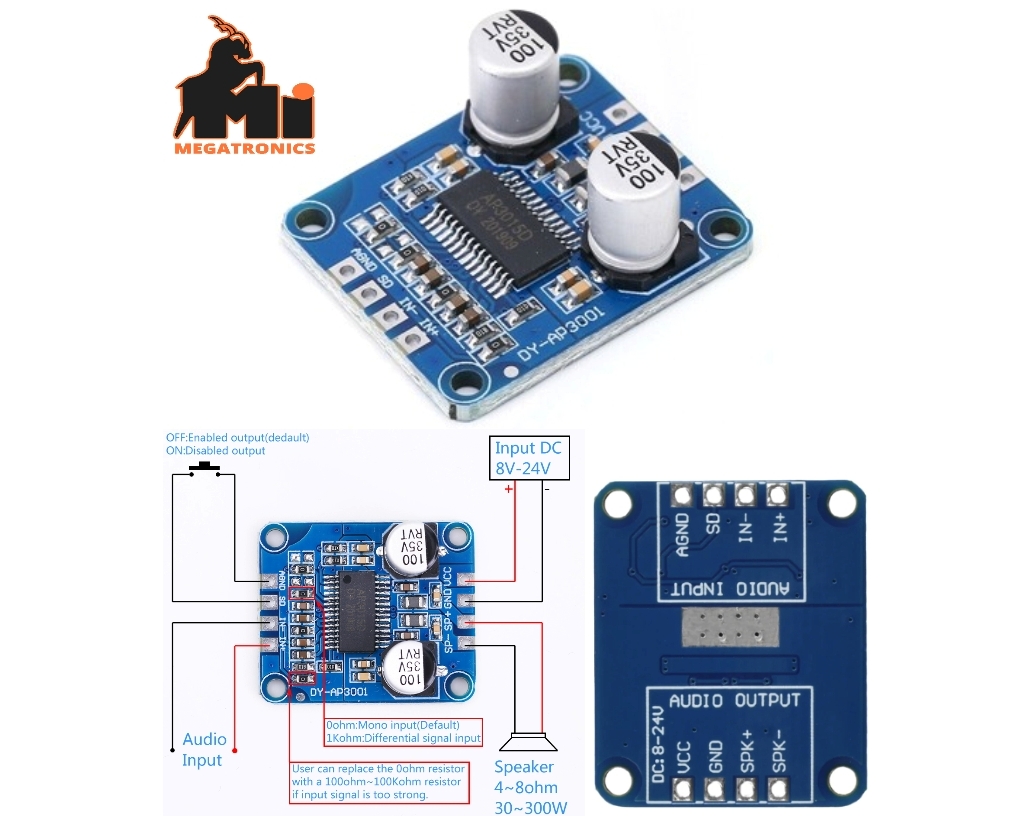

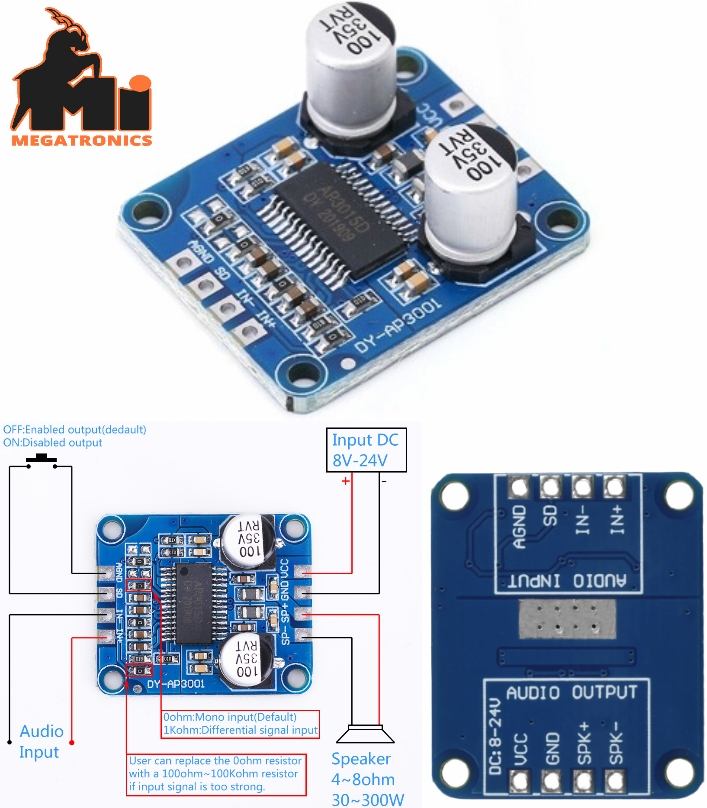

Choose the right speaker and connect it as shown in the wiring diagram.
Connect to the right power supply from the input terminal.
Application:
Modified speaker
Amplifier equipment
Car device
