ZGA16R-030 Full Metal Gear motor DC3V 200rpm 1:72 Reduction Ratio High Torque

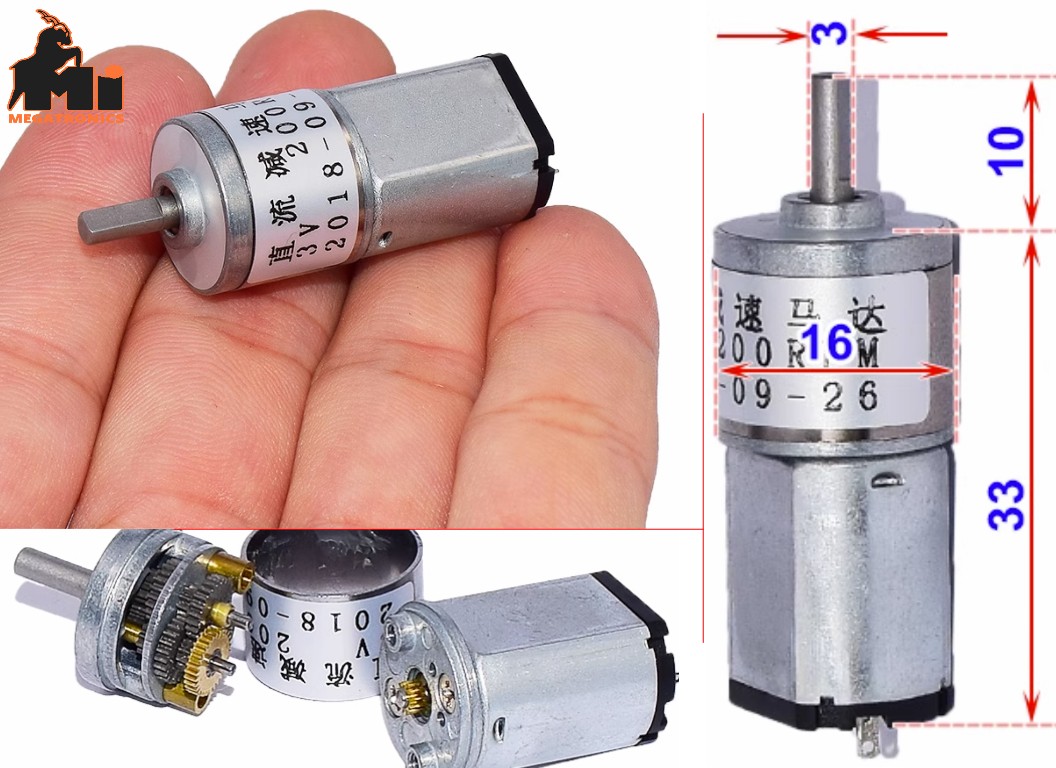

Output shaft diameter: 3 MM (2.5 MM with flat part)
Output shaft length: 10 MM
Reduction ratio 1:72
model ZGA16R-030,
a reduction ratio of 1:72,
an applicable voltage of DC3V to 5V,
and an actual speed of 200 rpm on 3V and 450rpm on 5V.
Although it is small in size, it has strong torque.
This is a micro precision reduction motor commonly used in instruments, DIY projects and household appliances.
After powering on the machine for testing, the reduction motor has a soft running sound and good gear precision.
The higher the voltage, the greater the motor power, the stronger the torque, the greater the current, and it is relatively easy to heat up. Buyers are requested to decide the working voltage according to their own working environment.
This micro 16MM reduction motor is of course more powerful than the N20 reduction motor in terms of torque.
