XY-CD60 Solar Battery Charger Controller battery cut off protection DC6-60V Charging Discharge Control Low Voltage Current
This is XY-CD60 Solar Battery Charger Controller Module DC6-60V Charging Discharge Control Low Voltage Current Protection Board.
It is a device used in solar power systems to manage the charging and discharging of batteries.
Here are its functionalities:
Solar Battery Charging: This module is designed to regulate the charging of batteries in solar power systems.
It supports a wide input voltage range from DC 6V to 60V, making it versatile for various solar setups.
Discharge Control: It also manages the discharge of batteries, ensuring that the stored power is efficiently used and safeguarding against over-discharging, which can damage batteries.
Low Voltage Protection: The module includes features to protect batteries from damage due to excessively low voltage.
It monitors the battery voltage and cuts off the discharge when it reaches a critical low level.
Current Protection: Offers protection against excessive currents that could potentially harm the batteries or the system.
This feature prevents overloading and ensures safe operation.
Control Board: It functions as a control board for the charging and discharging processes, implementing specific algorithms or logic to optimize the battery charging cycles and protect the batteries from potential damage.
This type of module is commonly used in solar power setups, including solar panels, batteries, and other components, to efficiently manage the charging and discharging of batteries, maximizing their lifespan and ensuring the system’s overall safety and efficiency.
Features:
Made of high quality material, sturdy, durable and practical to use.
Great for fixing overload and low voltage, protects the battery from undervoltage, protects the battery from overcharging, and protects the load control, prolong battery life.
When the battery voltage is insufficient, disconnect the load and connect the charger.
When the battery voltage is too high, disconnect the charger and connect the load.
Adjustable parameters and LCD screen, show you the parameters clearly, easy to use.
With a control voltage of 6-60V, it is suitable for batteries, lithium batteries, etc..
Package Includes:
1 x XY-CD60 Solar Battery Charger Controller
2.Features:
1>.Multi-function test instrument
2>.Dual mode work
3>.Support charging protection
4>.Support discharge protection
5>.Support set the charging/discharging time
6>.Automatic detection parameters
7>.HD LCD display
8>.Multi-parameter display
9>.Support power saving mode
11>.Supports automatic battery detection
12>.Comfortable outer casing
3.Parameters:
1>.Product name: XY-CD60 Lithium Battery Charging/Discharging Controller
2>.Model: XY-CD60
3>.Work voltage:DC 6V-60V
4>.Work Temperature:-40?~85?
5>.Work Humidity:0%~95%RH
6>.Size:79*43*27mm
7>.Operating current: 30mA
8>.Power consumption approximately: 250mW
4.Function:
1>.Module supports 2 working modes: Charging Control P-1 and Discharging Control P-2.
2>.Charging Control P-1: This mode is used for charging control to prevent overcharging.Display symbol IN indicates charging mode.
3>.Discharging Control P-2: This mode is used for battery discharge control to prevent battery over-discharge and delay battery life.Display symbol OUT indicates discharging mode.
4>.Battery voltage percentage: It is value get from battery voltage V, Lower Limit Voltage Value dn and Upper Limit Voltage Value UP. Calculation formula: V/(UP-dn).
5>.Automatic parameter check: Screen will display and flashing ERR if the Lower Limit Voltage Value dn is more than the Upper Limit Voltage Value UP.

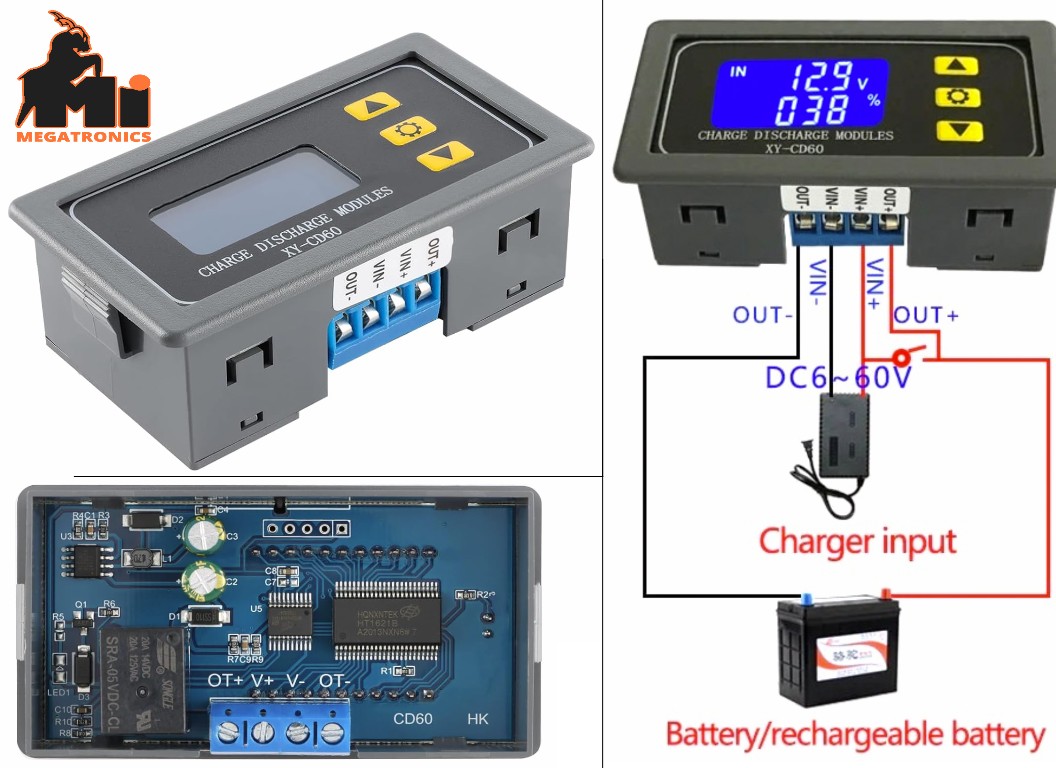

5.Charging Control P-1 Mode:
1>.Input terminal connect DC 6V-60V charger which use for battery.
2>.Output terminal connect 1pcs DC 6V-60V battery. It will display 0.00V and nbE if the battery does not meet the requirements.
3>.Output turn ON and the input charger starts charging the battery if battery voltage is less than the Lower Limit Voltage Value dn.
4>.Output turn OFF and the input charger stops charging the battery if battery voltage is more than the Upper Limit Voltage Value UP.
5>.The symbol IN will flashing when charging.
6>.Support set parameters:
6.1>.Upper Limit Voltage Value UP: Maximum voltage of the battery. Stop charging the battery if it exceeds this value. It is also the overcharge protection voltage value.
6.2>.Lower Limit Voltage Value dn: Battery allowed minimum voltage. Start charging the battery when the battery voltage is lower than this value.
6.3>.Charging Time OP:
6.3.1>.Set battery charging time.
6.3.2>.Turn ON charging time control function when the OP parameter value is more then 00:00. Minimum set time value 1minute.
6.3.3>.Turn OFF OP control if set 00:00.
6.3.4>.Start the timer when turn on output to start charging.
6.3.5>.Module turn OFF output to complete a charging process when timing is completed.
6.3.6>.Module automatically turns OFF charging time control function if battery voltage is less than the Lower Limit Voltage Value dn and flashing H:ER that means the unreasonable time parameter setting. It means insufficient charging and needs to continue charging the battery. Press any key to stop flashing.
6.3.7>.Record and display charging time if disabled Charging Time OP when short press button SET. Clear time if at next charging or exit charging time display interface.
6.4>.Turn ON Delay Time dOP: Set the delay interval between the first and the second charging. The time range is 0~999second.
6.Discharging Control P-2 Mode:
1>.Input terminal connect 1pcs DC 6V-60V battery.
2>.Output terminal connect suitable load. Note the output voltage is same to battery.
3>.Output turn ON and the battery starts to discharging if battery voltage is more than the Upper Limit Voltage Value UP.
4>.Output turn OFF and the battery stops to discharging if battery voltage is less then the Lower Limit Voltage Value dn.
5>.The symbol OUT will flashing when discharging.
6>.Support set parameters:
6.1>.Upper Limit Voltage Value UP: Threshold value to allow battery discharge.
6.2>.Lower Limit Voltage Value dn: Battery allowed minimum voltage. Stop discharging when the battery voltage is lower than this value. It is also the over-discharge protection voltage value.
6.3>.Discharging Time OP:
6.3.1>.Set battery discharging time.
6.3.2>.Turn ON discharging time control function when the OP parameter value is more then 00:00. Minimum set time value 1minute.
6.3.3>.Turn OFF OP control if set 00:00.
6.3.4>.Start the timer when turn on output to start discharging.
6.3.5>.Module turn OFF output to complete a discharging process when timing is completed.
6.3.6>.Module automatically turns OFF discharging time control function if battery voltage is more than the Upper Limit Voltage Value UP and flashing H:ER that means the unreasonable time parameter setting. Press any key to stop flashing.
6.3.7>.Record and display discharging time if disabled Discharging Time OP when short press button SET. Clear time if at next discharging or exit discharging time display interface.
6.4>.Turn ON Delay Time dOP: Set the delay interval between the first and the second discharging. The time range is 0~999second.
6.5>.Discharge Turn ON Forced Start Time FOP:
6.5.1>.This function is used to prevent the device from starting instantly and reduce the battery voltage, so that it is lower than the Lower Limit Voltage Value dn and causing the module to automatically turn off the output and causing the battery can not discharge properly.
6.5.2>.The module will check the battery voltage again if enabled Discharge Turn ON Forced Start Time function.
7.Button Description:
1>.Long press means need keep press for more than 5second.
2>.UP button:
2.1>.Short press to switch display charging/discharging time and battery voltage percentage.
2.2>.Long press to switch work mode. IN is Charging mode and OUT is Discharging mode.
2.3>.Short/Long press to increase parameter value at parameter set mode.
3>.DOWN button:
3.1>.Short press to turn ON/OFF output.
3.2>.Long press to turn ON/OFF display status L-P (power saving mode):
3.2.1>.ON: Turn ON power saving mode. The display screen will turn OFF after 5~10minutes.Press any button to resume display.
3.2.2>.OFF: Turn OFF power saving mode. The display screen will keep ON all the time.
3.3>.Short/Long press to decrease parameter value at parameter set mode.
4>.SET button:
4.1>.Short press to automatically switch/query display parameters UP/dn/OP/DOP at charging mode and UP/dn/OP/DOP/FOP at discharging mode in normal display interface. Short press to switch select parameter set in parameter set mode.
4.2>.Long press to enter into parameter set mode.
4.3>.Keep press about 5second to save parameter values.
8.Use steps:
1>.Connect right input voltage at VIN+ and VIN-.
2>.Long press button SET to select work mode.
3>.Short press button SET to switch parameters.
4>.Short/Long press UP/DOWN to increase/decrease parameter value.
5>.Keep press about 5second to save parameter values.
6>.Remove input and connect load.
7>.Connect right input voltage at VIN+ and VIN- again.
9.Application:
1>.Load tester
2>.Circuit tester
3>.Battery discharge tester
4>.Factory equipment inspection
5>.Ordinary load tester
6>.Power supply aging tester
7>.Auxiliary measurement charger Output current capability
8>.Charger Factory Batch Aging test use
10.Note:
1>.Load terminal can not short circuit.
2>.It is a charging/discharging controller but not a charger!
3>.It can not be used as a charger!
4>.Please read use manual and description before use.
