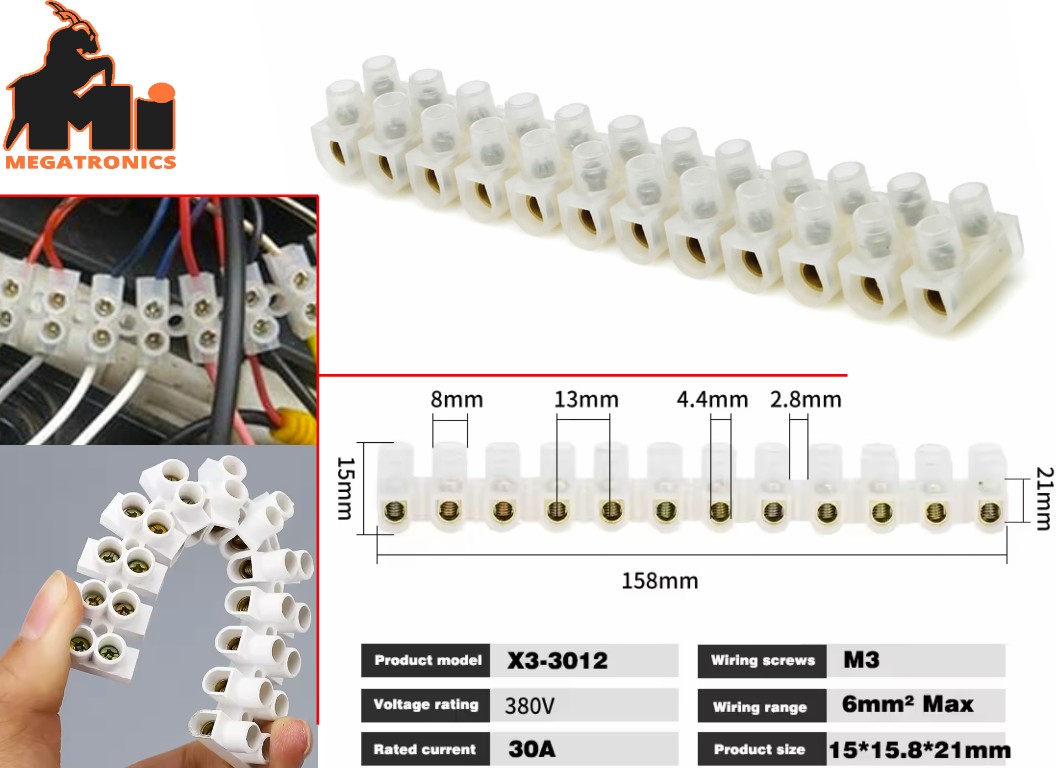

X3-3012 30A 12 way Terminal Block Connector Strip plastic Wire Connector flame retardant
The X3-3012 12-bit 30A Terminal Block is a robust and reliable terminal block designed for high-current applications.
With its 12-bit configuration, it allows for secure and efficient electrical connections in various industrial and commercial settings.
This terminal block supports a maximum current of 30A, making it ideal for heavy-duty wiring and power distribution tasks.
Key Features:
12-bit terminal configuration
Rated current: 30A
High-quality materials for durability
Secure and reliable connections
Easy installation and maintenance
Suitable for high-current applications
RoHS compliant
Technical Specifications:
Terminal Type: Screw terminal
Number of Terminals: 12
Rated Current: 30A
Rated Voltage: 600V
Wire Size: 4mm to 6mm 10-22 AWG
Insulation Material: Flame-retardant polyamide
Contact Material: Tin-plated copper
Operating Temperature Range: -40°C to +105°C
Mounting Type: DIN rail or panel mount
Applications:
Industrial Control Systems
Power Distribution Units
Electrical Panels
Heavy Machinery
HVAC Systems
Renewable Energy Systems
Product Name:Terminal Block
Model: X3-3012 or 30A-12P (12 bits)
Screw: galvanized, M4 x 6mm
Material: Made of PE material, good insulation, not easy to age, with zinc alloy connecting column inside
Voltage: 380V
Applicable wire : 4mm - 6mm
Features: This terminal block adopts reliable screw connection technology. The terminal block adopts wire pressing frame and unique screw locking design to make the wiring connection safe and reliable.
Application: Used for connecting wires of motors, electrical controls, power supplies, home appliances, lighting, machinery, etc.
Widely used in a variety of lamp, decorated lighting, factory, household appliances and power distribution cabinets, distribution boxes and other transmission equipment
