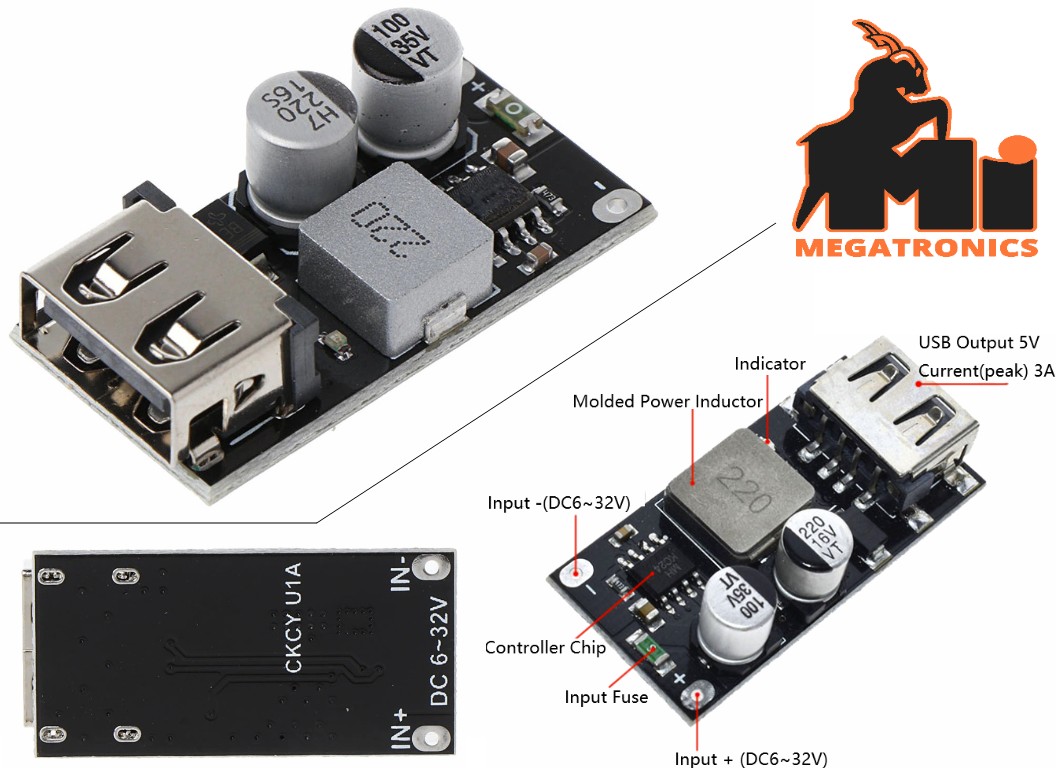

USB QC2.0 QC3.0 fast charging module Step down buck converter 5V 9V 12V power supply
Input voltage range: 6V to 32V
Output voltage: The default is 5V. After triggering the fast charge, it is automatically adjusted between 3 and 12V.
Power output. 24W (5V, 3.4A, 9V, 2.5A, 12V, 2A, etc.)
Wired output voltage compensation
Conversion efficiency: 90%-97%
Supports multiple fast charging protocols
Input overvoltage, protection against undervoltage
Input overcurrent
protection Output overcurrent and short circuit
protection Overheating protection
Supporting Fast Charging Protocol.
Support DCP, BC1.2, for Apple, for Samsung.
Supporting for Huawei Fast Charging Protocol FCP/SCP.
Supporting for Huawei Fast Charging Protocol AFC.
Supporting for Spreadtrum Protocol SFCP.
Support for Qualcomm QC2.0 and 3.0.
Support for MTK PE1.1/PE2.0.
Output Voltage Cable Compensation Function.
Supporting multiple fast charging protocols.
Input Overvoltage and Undervoltage Protection.
Input Overcurrent Protection.
Output Overcurrent and Short Circuit Protection.
Over-temperature protection of the whole machine
Supports multiple fast charging protocols.
Input overvoltage, overcurrent, under voltage protection.
Output overcurrent, short circuit protection.
Module over temperature protection.
Fine workmanship and good performance.
Long service life.
Used to solar cell phone charging, car charging retrofit, driving recorder power supply, home power conversion etc.
Applications:
Solar panel to charge mobile phone
Modify charging car
Power drive recorder Power
conversion home
