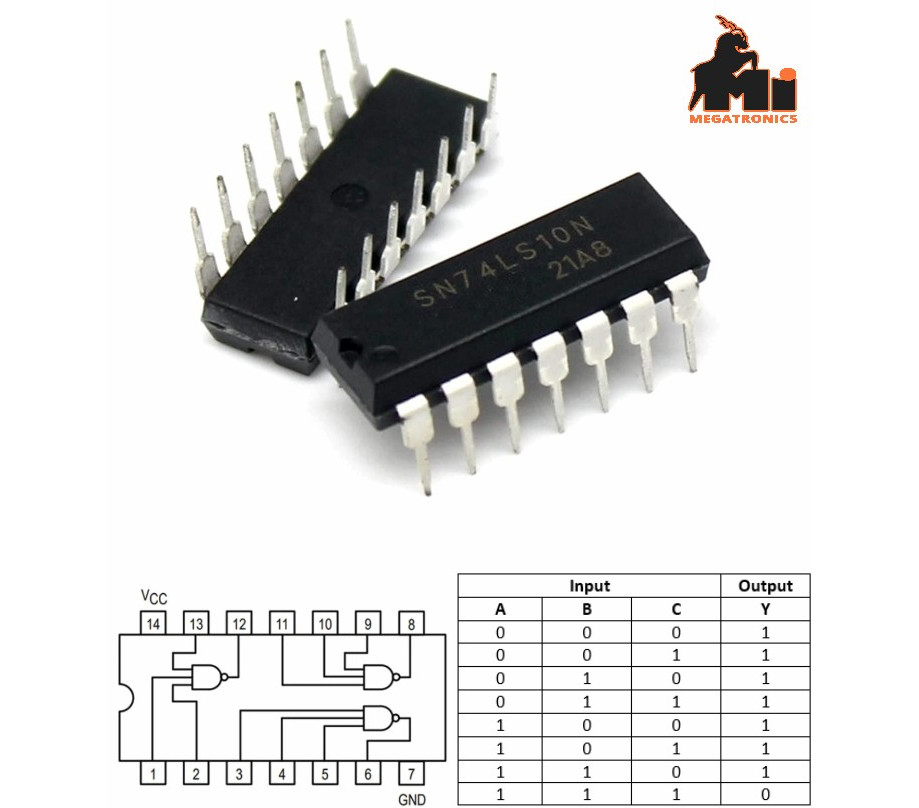

TTL 7410 74LS10 NAND Gate 3-Inputs SN74LS10N DIP14 logic gates
In digital electronics, a NAND gate (NOT-AND) is a logic gate which produces an output which is false only if all its inputs are true.
These device contain three independent 3-input
positive-NAND gates. They perform the Boolean
functions Y = A • B • C or Y = A + B + C in positive
logic.
The SN54ALS10A and SN54AS10 are
characterized for operation over the full military
temperature range of −55°C to 125°C.
The
SN74ALS10A and SN74AS10 are characterized
for operation from 0°C to 70°C.
Logic Type: NAND Gate
Number of inputs: 3
Minimum supply voltage: 4.75 V
Maximum supply voltage: 5.25 V
Output current: 8 mA
Minimum operating temperature: 0 ° C
Maximum operating temperature: 70 ° C
Encapsulation: DIP 14pines
