Static Drive 2 digit seven Segment Tube LED Display screen 74HC595 Tube 7 segment digital display Arduino

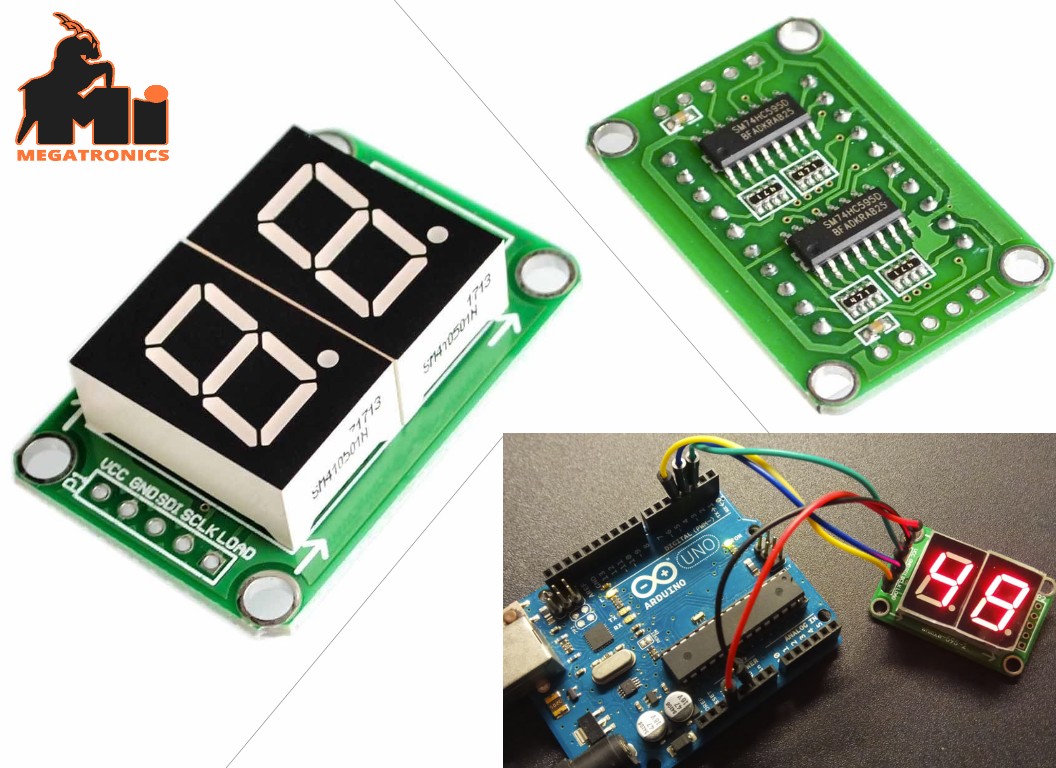

This is a 2 Digit 0.5inch 7 Segment Digital Tube LED Display Module, each digit controlled by a 74HC595 integrated.
It can be uses withe with a microcontroller, for example, Arduino, raspberyy pi, 8051, pic etc.
The operating voltage is between 3-5VDC.
Simple interface, VCC +, GND -, SDI data, Shift clock SCLK, latch LOAD, only three wire interface with the microcontroller, saving microcontroller IO
Data output for easy cascade.
Features:
The 2-way bright red digital display module
Easy to Install, there are four screw holes.
Use two 74HC595 SMD drives, digital tubes were each band-limiting resistor, to ensure uniform brightness.
Package Includes:
1 x 74HC595 2 Digit 0.5inch 7 Segment Digital Tube LED Display Module
