SN74LS83 7483 4-bit Full Adder IC logic gates DIP16 Binary Adder

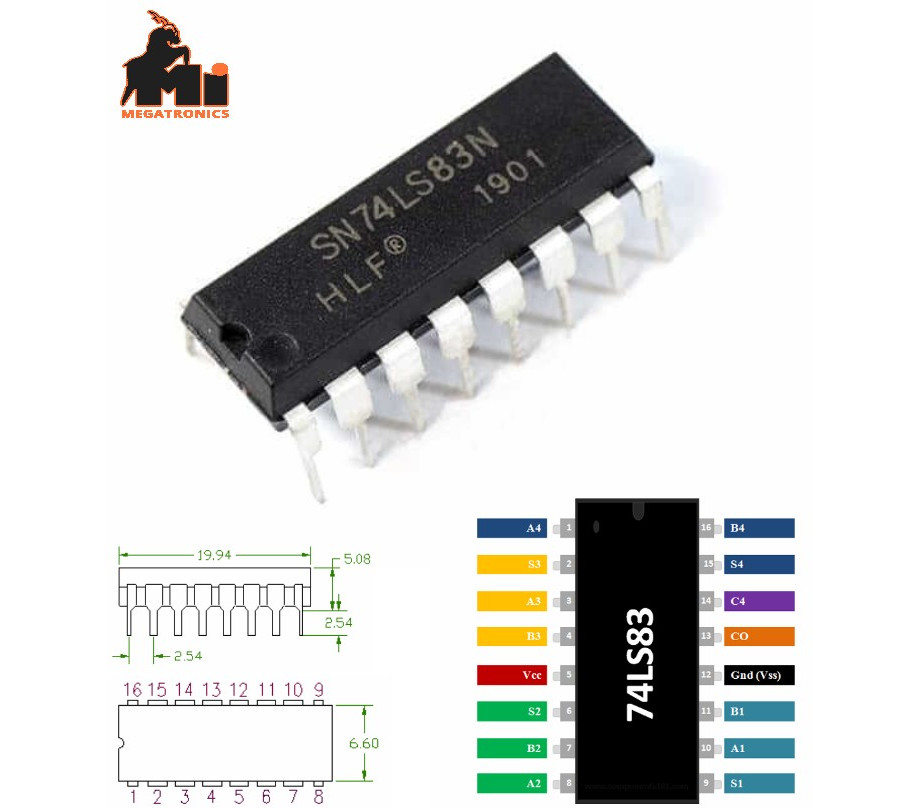

74LS83 Binary Adder or SN74LS83N is a 4-bit fast carry integrated circuit "IC" in DIP-16 package. The 74LS83 has four independent stages of full adder circuits in a single package. It is commonly used in applications where arithmetic operations are involved.
It is used to carry out different electronics practices since it is a high-speed 4-bit binary full adder with internal carry; it accepts 2 4-bit binary words (A1 – A4, B1 – B4) and a carry input (C0).
It generates a binary output sum (R1 – R4) and a carry output (C4) from the most significant bit.
The LS83 operates with active HIGH or active LOW operands (positive or negative logic).
Foot type: DIP16
Operating voltage range of IC 74LS83: 4.5 ~ 5.5V
Operating current: 39mA
Current through OS: -20 ~ -100mA
High logic level: 3.5V
Low logic level: 0.25V
Operating temperature range: 0 ~ 70 degrees C
Machine cycle: 16ns ~ 24ns
