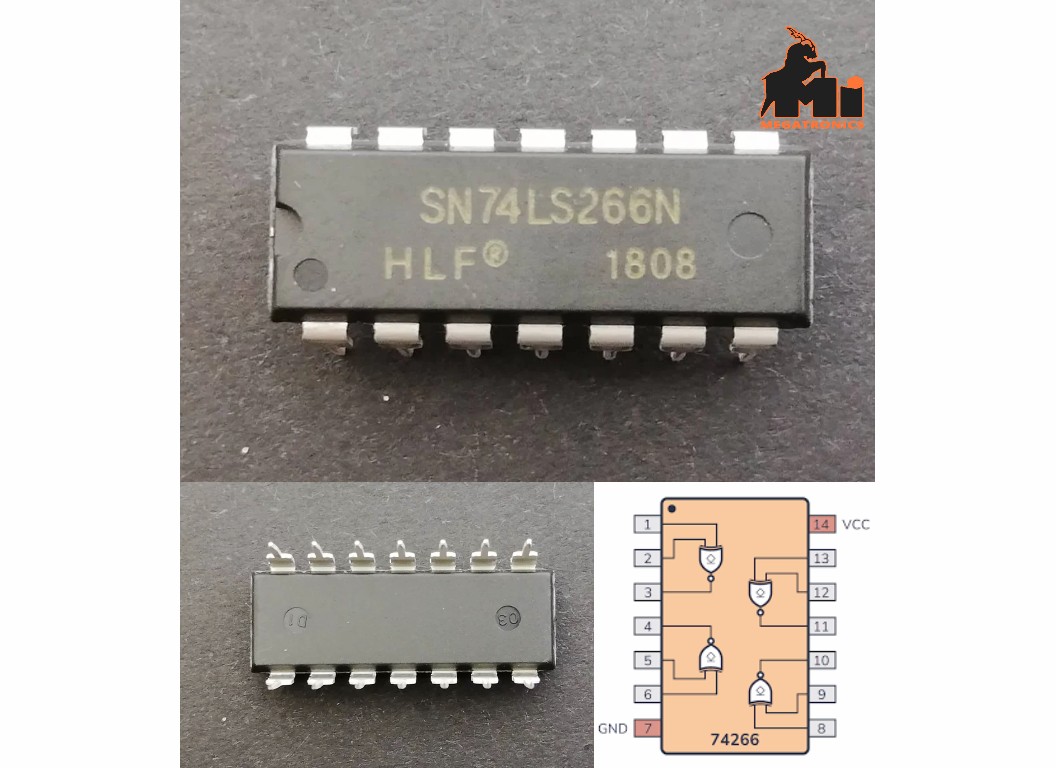

SN74LS266N 74266 logic gates IC QUAD 2 Input Exclusive NOR XNOR Gate DIP15
74HC266 is a chip with four open-collector XNOR gates. Open-collector outputs make it simple to connect to other chips that use different logic levels.
The 74266 gives you four open-collector XNOR gates that can be used individually.
An XNOR gate is a logic gate that outputs 1 (HIGH) if its inputs are equal (both 1 or both 0)
The 74HC266 comes in a 14-pin package, and you need to connect it to power before you can use it.
Most 7400 ICs support a VCC voltage of 5V. One difference between the HC and LS version of the chip is that the 74HC266 supports 2V to 6V, while the 74LS266 only supports 5V.
Logic type of circuit: XNOR Gate
Number of entries: 2
Maximum supply voltage: 5.25 V
Minimum supply voltage: 4.75 V
Output current: 8 mA
Minimum working temperature: 0°C
Maximum working temperature: 70°C
Encapsulation: DIP
Number of pins: 14
