RPM Speed Meter Hall Proximity speedometer motor tachometer digital DC 8-24V
1. The use of high-quality materials quality assurance
2. Multi-functional speed / counting meter, with speed measurement function, counting function
3. The product is compatible with Hall switch, metal proximity switch, infrared proximity switch and other detection switch signal
4. The sensor has high sensitivity, high reliability, good anti-interference performance, into long-term stable work
5. Wide range of applications, reliable performance, simple installation
Parameters:
Input voltage: DC 8V to 24V
Hall sensor: NPN type 5V
Measuring range: 10-9999RPM
Measurement accuracy: ±0.1%
Display mode: 0.56 inch digital tube
Housing material: ABS plastic
Hall switch wire length: 1m
Panel opening: length * width 76mm * 39.5mm
Installation: Embedded
Attention:
Input voltage must be divided into positive and negative, can not input 220V household electricity

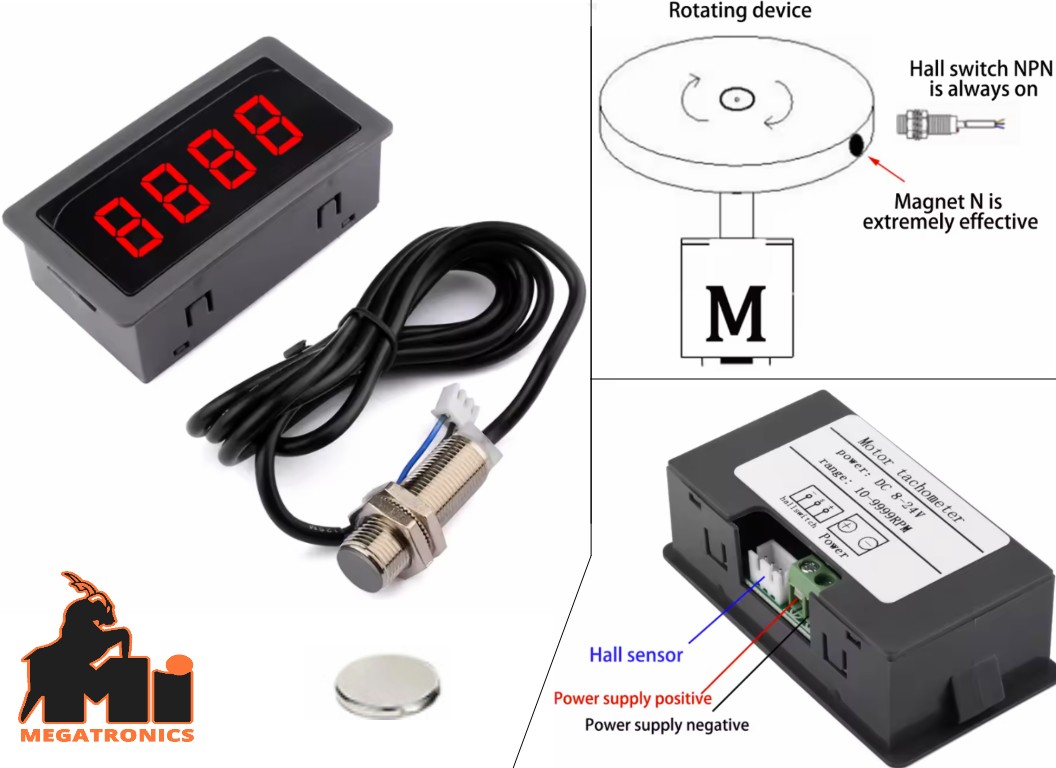

Magnet and Hall switch installation:
Installation attention to the magnet polarity, the magnet after the Hall switch near the speed display, such as no speed, then change the other side of the magnet, the installation needs to be secure to prevent high-speed throw out
Hall switch front and magnet effective distance <5mm, magnet N pole effective
Hall switch and motor need to be fixed with bracket, not handheld motor Hall switch for speed measurement
Magnet fixed on the large diameter shaft, the turntable must be near possible concentric horizontal rotation, wobble not horizontal rotation will lead to detection of more than detection is not allowed
Packing List:
1 x tachometer
1 x sensor
1 x magnet
