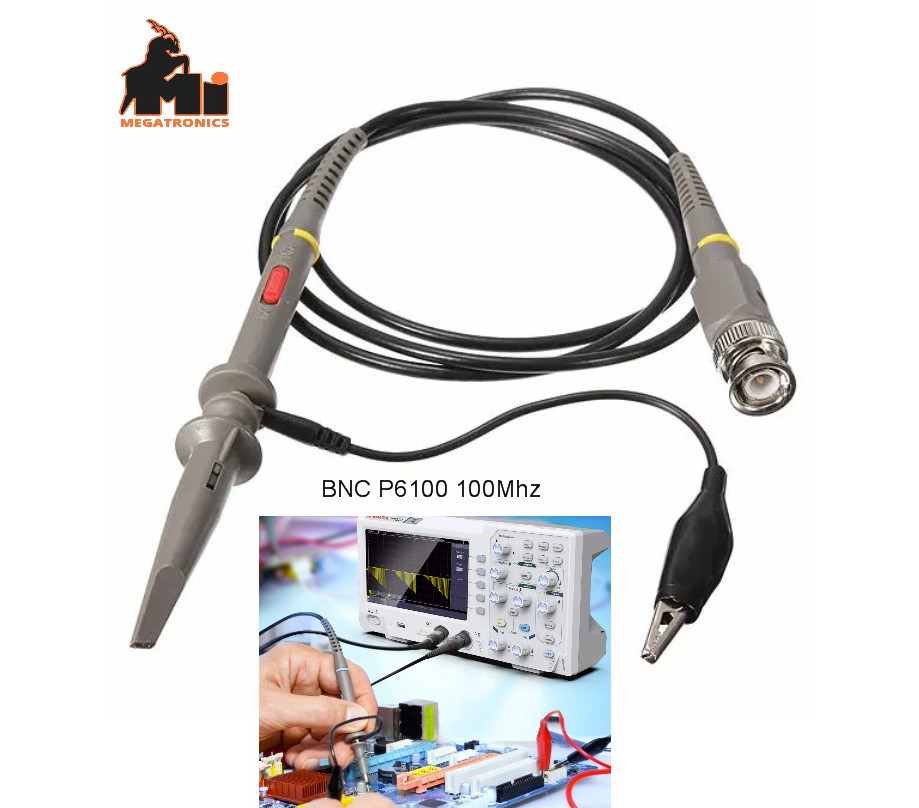

P6100 100MHz Oscilloscope Clip Probe BNC to Minigrabber Test Lead Kit 10:1 and 1:1
Switchable BandwidthCE certification IEC1010 standard
Technical Parameters:Bandwidth: 100MHz
Attenuation ratio: X1 X10 ± 2%
Maximum input voltage: 600V (DC+ACp-p)
Input resistance: 10MO
Length: 1.2m1.
Detachable hook tip,
the hook is well protected by the plastic case2.
Adjustable probe attenuation, you can choose 1X or 10X by sliding the switch.3.
Locating sleeves ensure the stability and reliability of the tip exposed to the test point.
4. Marker rings in different colors help to identify different channels.
Great choice for oscilloscope probe.
Attenuation Ration : 1x/10xInput Resistance : 1MO : 10MO
Input Capacitance : 1X: 85pF-135pF 10X: 18.5pF-22.5pF 16pF-20pF
Compensation Range : 15pF-45pF 10Pf-35pF
Bandwidth : 1X: DC-6MHz 10X: DC-20MHz 40MHz 60MHz 100MHz 150MHz 200MHz
Rise Time : 1X: =58ns 10X: =17.5ns =8.75ns =5.8ns = 3.5ns =2.3ns =1.75ns
Working Voltage : 1X: =300V DC 10X: =600V DCOperating : -10?---+50?
Non-operating : -20?--+75?Humidity : =85% relative humidityCable Length : 120cm
