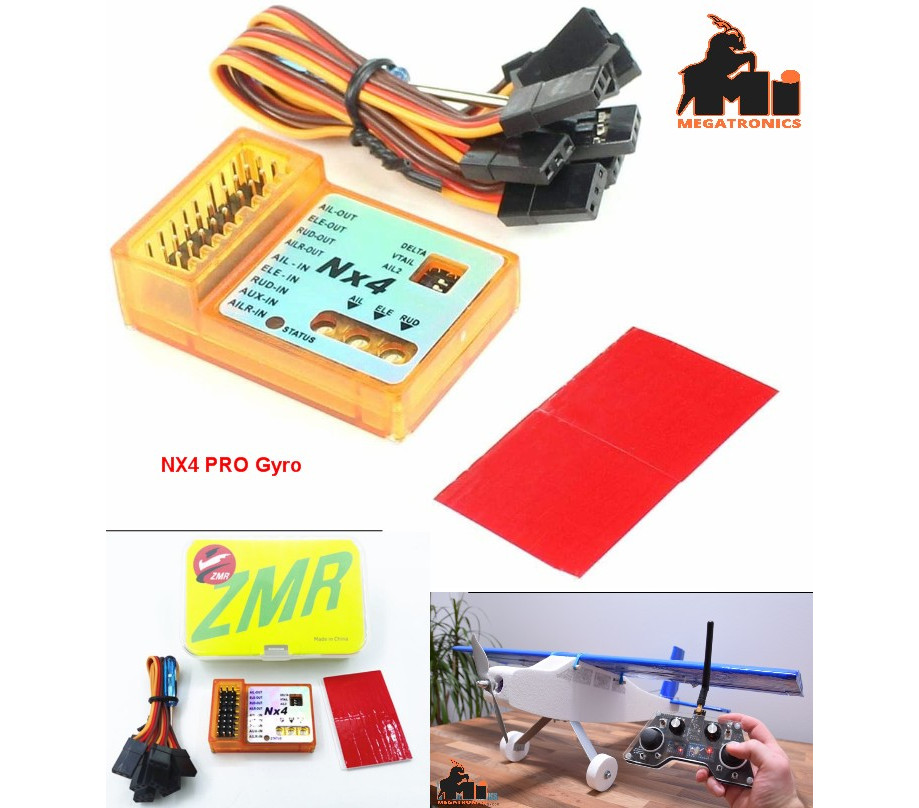

NX4 PRO Flight Controller 3D Flight Gyroscope Balance for Fixed-Wing Aircraft Support Rate/Hold/Gyro Off Mode
The NX4 PRO has Horizontal Self-stabilization, Manual Flight, 3D Lock.
The NX4 PRO Supports: ordinary T-tail fixed wing / single aileron / double aileron (requires remote control to set mixing control) / delta wing (flight control built-in mixing control) / V tail (flight control built-in mixing control) and other models.
Input voltage: DC 5 or 6V
Working temperature: 0-50 ° C
This product supports: ordinary T-tail fixed wing, single aileron, double aileron (requires remote control to set mixing control), delta wing (flight control built-in mixing control), V tail (flight control built-in mixing control) and other models.
Quick installation tips:
1. Refer to the manual for correct connection and check whether the remote control is working properly.
2. Adjust the DIP switch to select the correct model. Check whether the direction of the rudder control surface of the remote control is correct.
3. Adjust the working direction of the gyroscope through the potentiometer switch and check whether the control direction of the gyroscope is correct. (Please use small sensitivity for the first flight)
4. Calibrate the neutral point of the remote control through the remote control mode switch. (When replacing the remote control or receiver, the neutral point must be calibrated)
