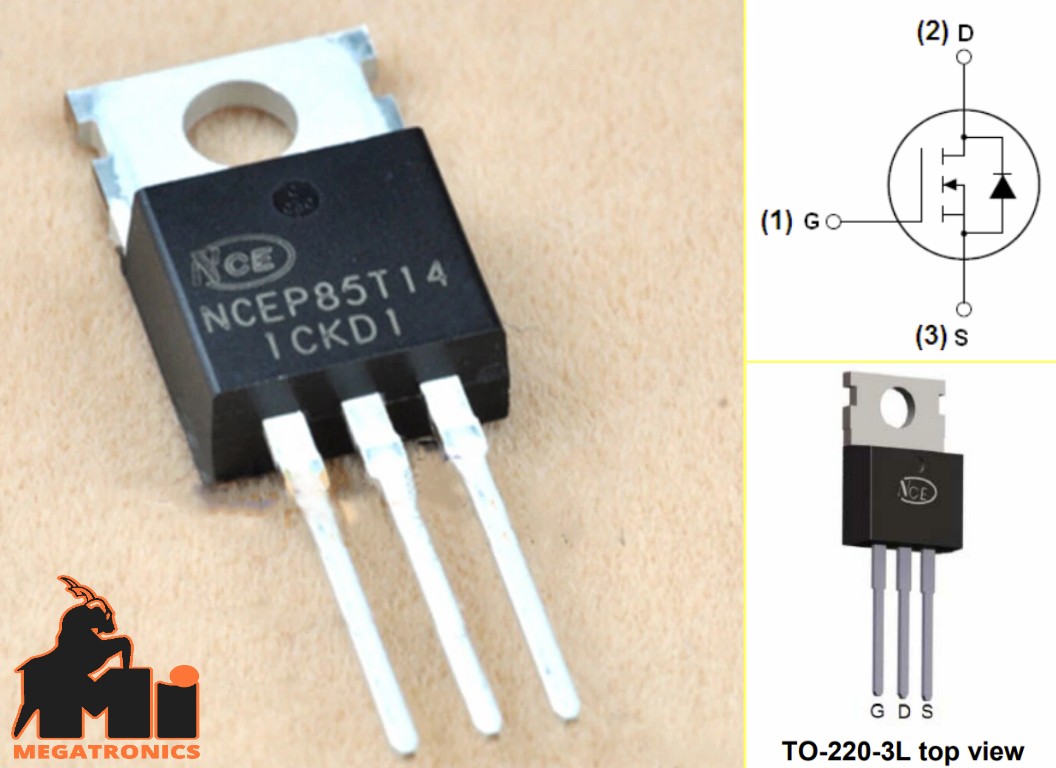

NCEP85T14 TO-220 transistor 85T14 85V 140A MOSFET Controller
The NCEP85T14 uses Super Trench technology that is
uniquely optimized to provide the most efficient high
frequency switching performance.
Both conduction and
switching power losses are minimized due to an extremely
low combination of RDS(ON) and Qg.
This device is ideal for
high-frequency switching and synchronous rectification.
VDS =85V,ID =140A
RDS(ON) <4.1m? @ VGS=10V
Excellent gate charge x RDS(on) product(FOM)
Very low on-resistance RDS(on)
175 °C operating temperature
Pb-free lead plating
DC/DC Converter
Ideal for high-frequency switching and synchronous
rectification
