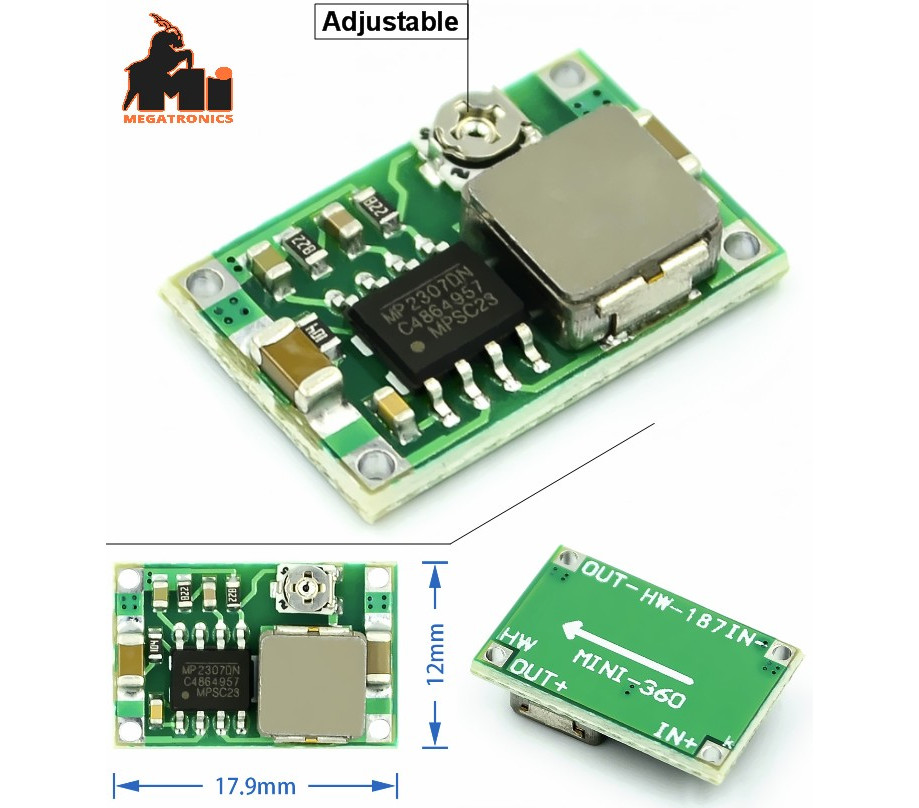

Mini-360 DC-DC Buck Converter Step Down mini360 Module
Module Properties: non-isolated buck
Rectification Methods: synchronous rectification
Input Voltage: 4.75V-23V
Output Voltage: 1.0V-17V
Output Current: Peak 3A, long 1.8A
Conversion Efficiency: 96% (the highest)
Switching Frequency: 340KHz
Output Ripple: 340mV (empty cut pm)
Load Regulation: +/- 0.5%
Voltage Regulation: +/- 2.5%
Working Temperature: -40°C - + 85°C
External Dimensions: 17 * 11 * 3.8mm (L * W * H)
Features: Use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient.
Applications: HM dedicated DC-DC step-down module (supports 2S ~ 5S lithium polymer), DIY mobile power,
car power, communications equipment supply, there are a variety of size and weight for demanding applications.
Package included: 1pcs Mini-360 Ultra-small HM Step down Power Module
