? 2A

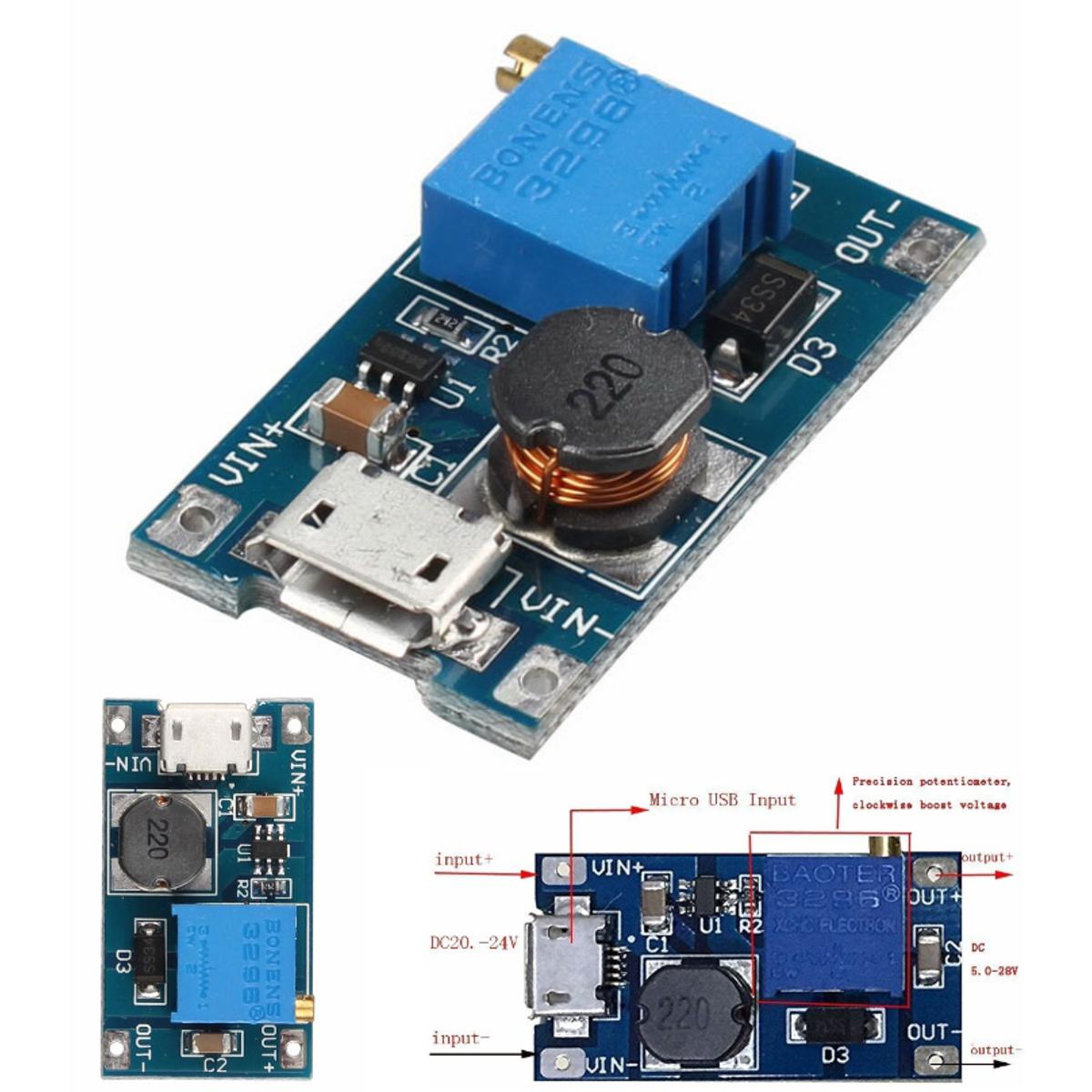

Booster Board DC to DC Step Up Power Module 2V-24V To 5V-28V
? The whole network smallest adjustable boost module can be easily
installed in a variety of small equipment.
? The module supports Micro USB input, a USB charger or mobile power supply
can easily get to it 9V, 12V, 15V, 18V, 24V, easy to use.
• Wide input and output voltage, high conversion efficiency.
• Maximum output current: 2A (recommended for use within 1A)
• Input voltage: 2V-24V
• Maximum output voltage:> 28 v (recommended for use within 26V)
• Efficiency:> 93%
• Size: 30mm*17mm*0.7mm (L*W*H)
• Precautions:
1) This module is a step-up module, the output voltage is greater than the
input voltage.
2) peak current output current does not exceed 2A.
