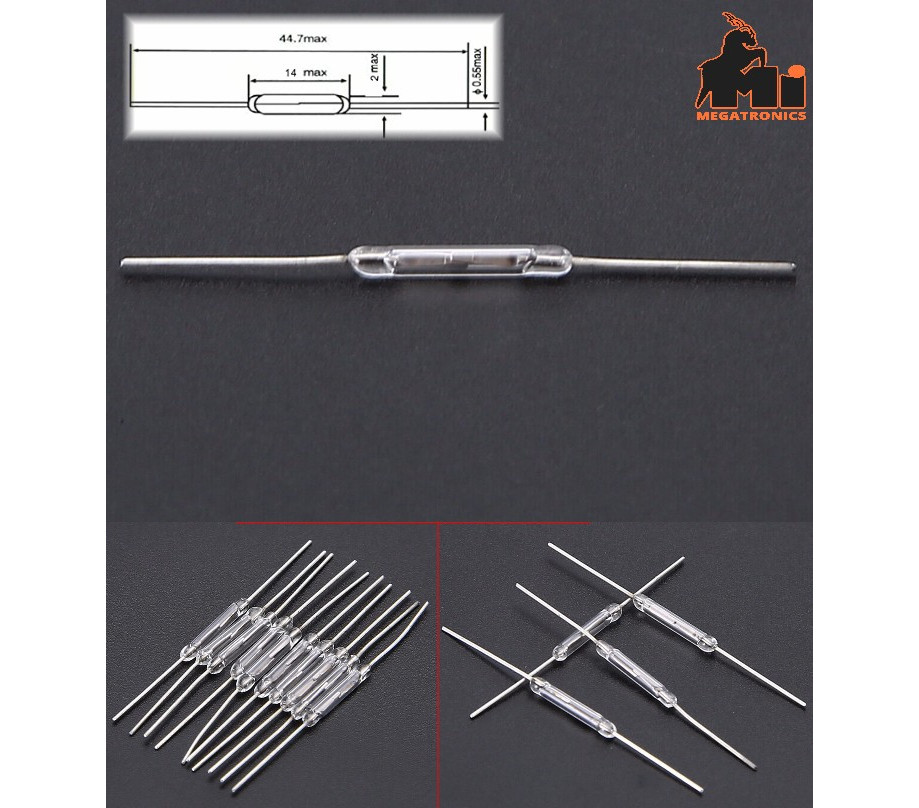

Magnetic Glass Reed Switch 2x14mm Normally Open N/O 2-Pin
Glass Length: 14mm
Glass Diameter: 2mm
Total Length: 45mm
Max. Switching Voltage: 300 VDC
Min. Breakdown Voltage: 150 VDC
Max. Contact Rating: 10W
Max. Switching Current: 0.55 A
Max. Operate time: 0.45 ms
Bounce time: 0.25 ms
Max. Release time: 0.35 ms
Resonant Frequency: 5000 HZ
Max. Operating Frequency: 400 HZ
Pull in Value 20-70 AT
Min. Drop out Value 4 AT
Max. Contact Capacitance 0.5 pF
Electrical Life 50mV-10μA-1x106
Normally Open Contact Reed Switch 2 x 14 mm Magnetic Control Switch.
The two magnetic pins inside the button pull together when it is subjected to a magnetic field, closing it.
The Reed Switch separates and opens when the magnetic field is eliminated.
This works fantastically as a non-contact switch.
Up to 1.2A can be carried by this switch.
This compact and user-friendly module is suitable for a range of climatic settings. In the temperature range of -50°C to +140°C, it performs quite dependably.
