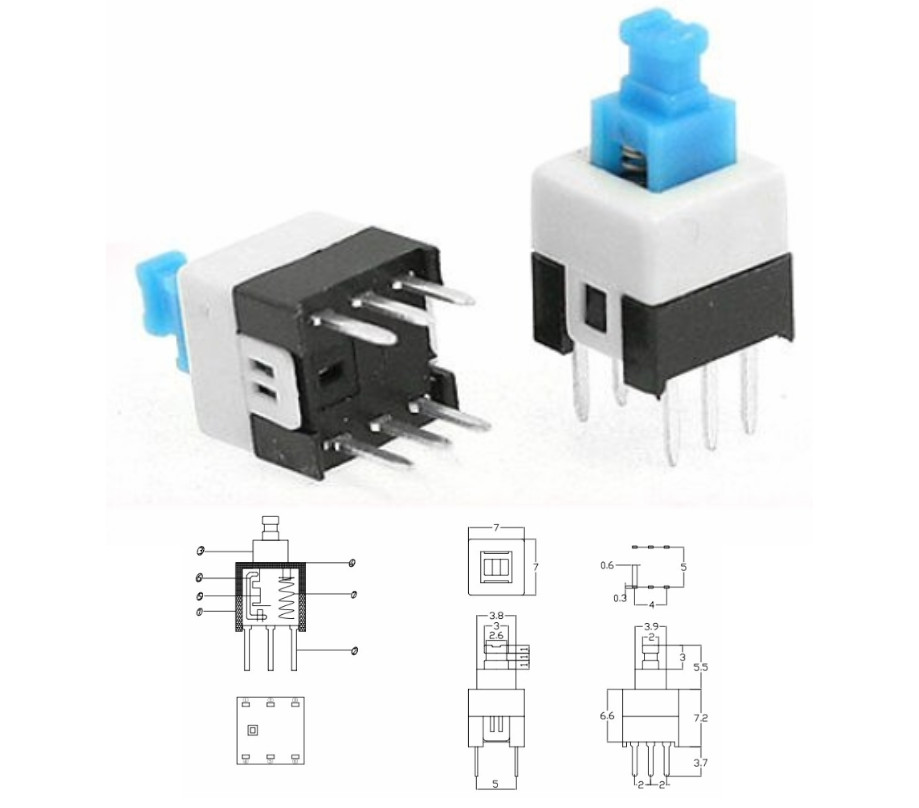

7x7mm self-locking Key switch button switch 6pin
Product NameTactile Push Switch
Contace Resistance <0.3ohm
Insulation Resistance>100mΩ
Operation Force150-300g
Rating DC 0.5A 30V
Withstand VoltageAC 250V (50Hz))
minLife100, 000 cycles
Operation Temperature-40oC to 70oC
Square Body Type7 x 7mm
Operating Mode Self Lock with Click Two Row Pin Size5 x 4mm(L*W)
Pin Length3mm
Knob Size3.4 x 3.4mm(L*W)
Cap Size2.6 x 1.8mm(L*W)
Color Black, BlueMaterial(External)Plastic,
6 Pin configuration can be used as jumper leads to facilitate layout.
Features self lock, square knob with cap, low contact resistance, small bouncing noise, high contact reliability.
Applied to home appliances and electrical products, such as audio, computer, office appliance, communication and measuring instruments, etc.
.
.
