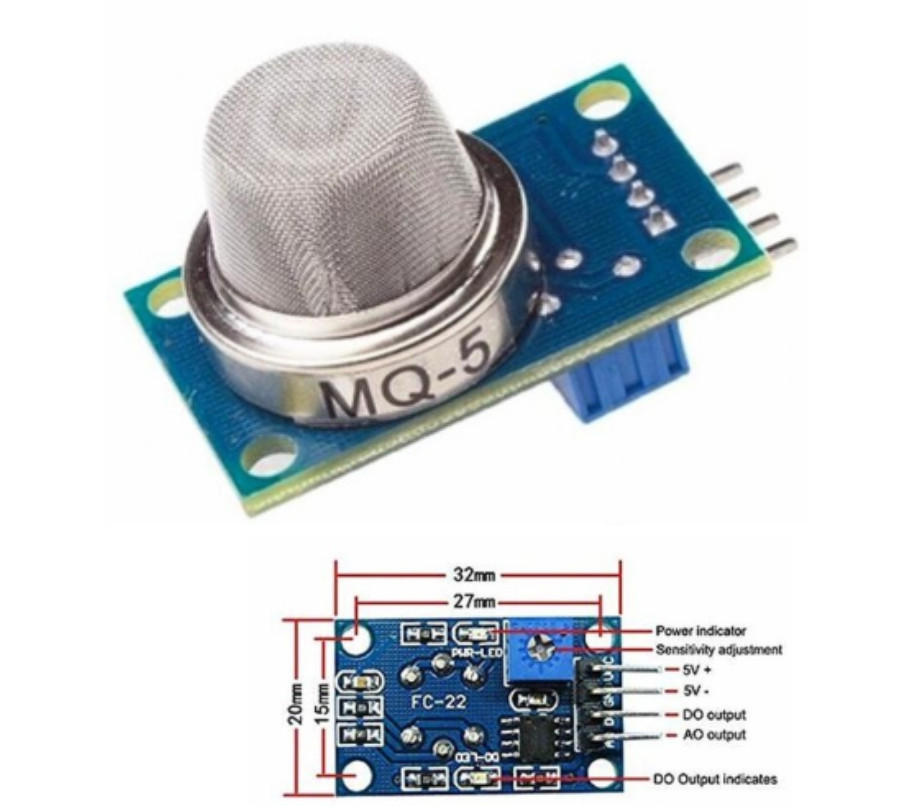

Product Name Gas Sensor Module
Model MQ-5
Type Analog
Detecting Type Liquefied Gas, Methane, Coal Gas
Rated Voltage DC 5V
Rated Current 180mA
Detecting Range 300-10000ppm
Pin Quantity 4
Pin Spacing 1.8mm/ 0.07"
Pin Definition
AO-analog Output
DO-Digital Output
GND- Ground
VCC-Voltage To Current Converter
Total Size 35 x 20 x 21mm/ 1.4" x 0.79" x 0.83" (L*W*H)
Material Plastic, Electronic Part
Net Weight 7g
Package 1 x Gas Sensor Module
Description:
Features: Analog type, DC 5V rated voltage, 180mA rated current, high sensitivity to Combustible gas in wide range.
The gas sensor are suitable for detecting Liquefied Gas, Methane, Coal Gas concentrations in the air.It is able to give alarms when those gas leaks. You can adjust the sensitivity with the potentiometer.
