DESCRIPTION
This module is ideally suited to adding a display to your project and is compatible with prototyping boards such as the MB-102 which feature standard sockets with a pin pitch of 2.54mm. This module lets you display your information in a bold and bright way, taking your project to new levels of display, writing all manners of numbers and words with numbers from 0-9, A-F, - and .
This module has Red LEDS that are powered via a connection to 3.3 - 5V. The display operates by being supplied with VCC to a particular segment pin. Following which applying GND to both a particular D pin will cause a specific segement on a specific digit to illuminate.
The pins are suited to standard sockets with a pin pitch of 2.54mm.
FEATURES
50 x 19 x 15mm (l x w x h)
SMA420564 Chipset

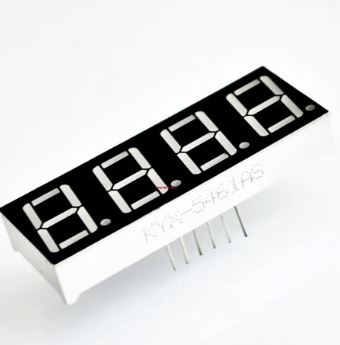

4 Red 7-Segment digits with decimal points
3.3 - 5V DC Input (resistor required)
Parallel control
0.56"(inch) Height digits
Common cathode
Suitable for use with 220 Ohm resistors
Designed to be compatible with standard 2.54mm sockets
