KCD2-7-223B Reverse Polarity Rocker Switch Momentary toggle Motor Control Switch
Applications
Motor polarity control, actuator control, Widely used in industrial control, van modification, marine panel, automotive, motor control, truck and bus.

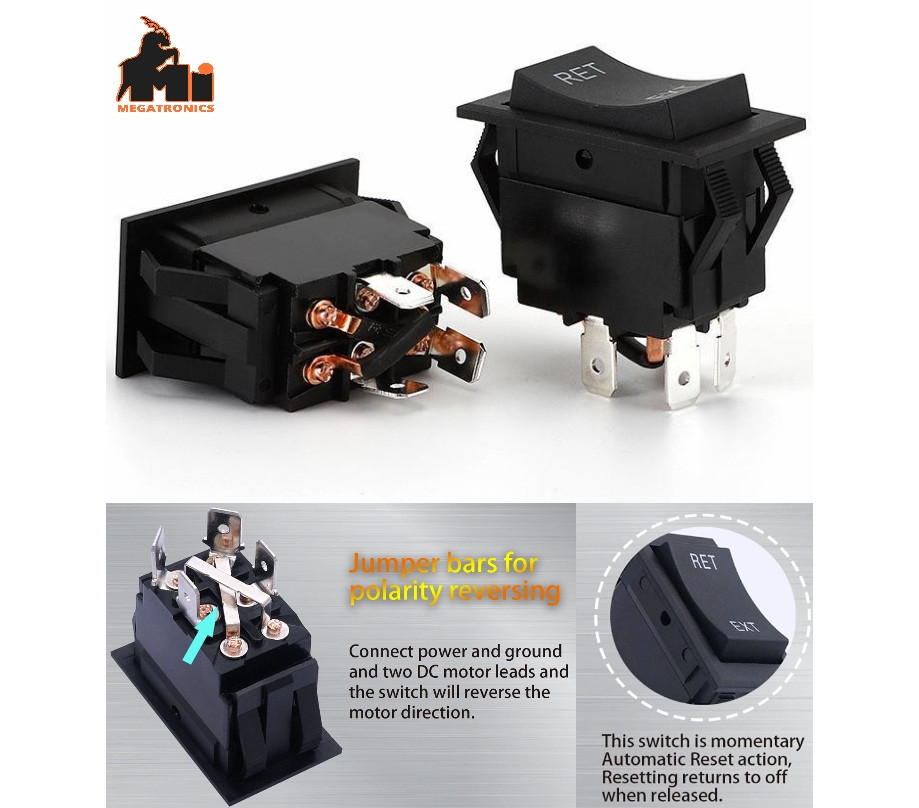

The rocker switch comes with built-in jumper bars for polarity reversing. Merely connect power and ground and two DC motor leads and the switch will reverse the motor direction.
This switch is momentary Automatic Reset action, Resetting returns to off when released.This polarity reversing switch replacement for most RV/trailer power tongue Jacks wheel.
switch comes with jumper bars for polarity reversing, connect power and ground and two DC motor leads and the switch will reverse the motor direction.
Current-Voltage rating: 15A250V 30A12V 15A24V
Product model: KCD2-7
Switch Size: 45x20x45mm/1.75''x0.76''x1.77''(L*W*H)
