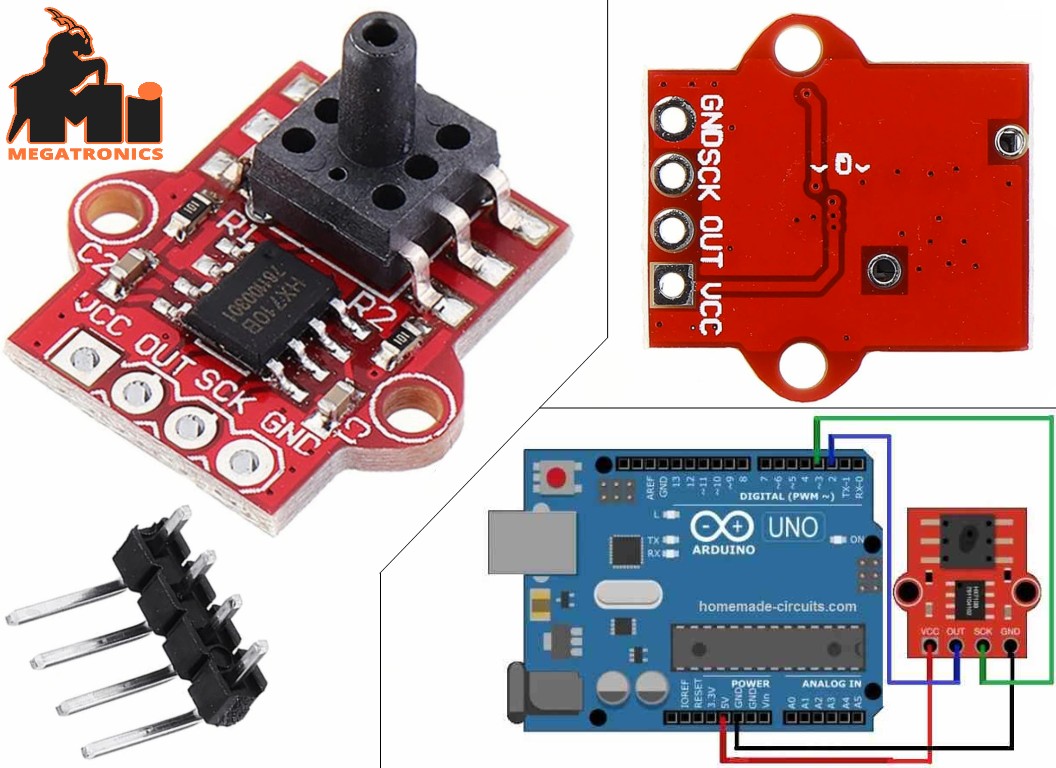

HX710B Air Pressure Sensor Barometric Liquid Water Level Controller Board 0-40KPa 3.3V 5V for Arduino
This HX710B air pressure sensor module uses a high-precision AD sampling chip, adopts a 0-40KPa air pressure sensor, connects a 2.5mm hose, detects water level, and other air pressures.
This air pressure module uses a high-precision AD sampling chip, adopts a 0-40KPa air pressure sensor, can connect a 2.5mm hose, can detect water level and other air pressure, voltage 3.3v-5v, compact size, using a 5k resistance bridge above The sensor, the specific pressure value needs to be calculated by ourselves.
Specifications:
Model: HX710B
InterfaceType: Serial
Data Output Rate: 10 SPS / 80SPS
Max. Operating Current: 1.5mA
Operating Temperature Range: -40 to 85°C
Gain: 32 / 64 / 128
Features:
On-Chip Active Low Noise PGA.
Selectable Gain of 32,64, and 128.
On-Chip Power-ON-Reset.
Two Selectable Differential Input Channels.
Simple Digital Control And Serial Interface.
Package Included:
1 x HX710B Air Pressure Sensor Module
