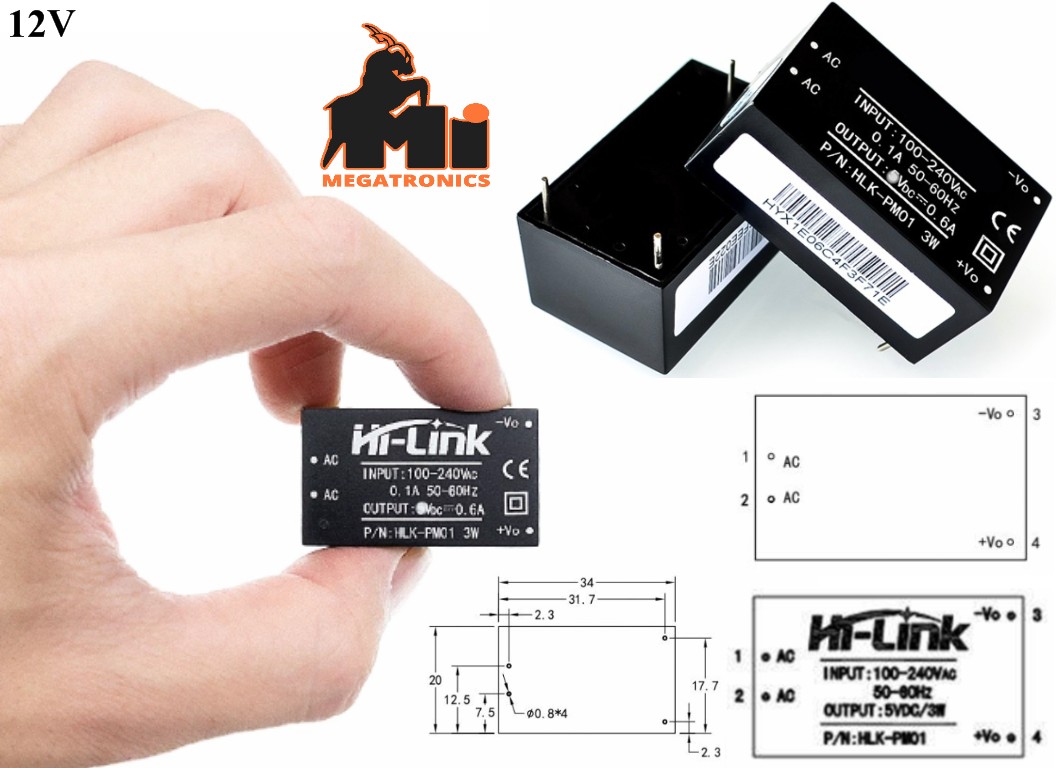

HLK-PM01 AC 220V to DC 12V Step Down Power Switching Power Supply Hi Link Module
This is a rather small module that can supply 12V/0.6A from 220VAC, this makes it perfect for small projects that needs a 12 volt supply from mains.
The latest Hi-Link power module, suitable for intelligent switch control device, small volume, low current, input voltage range, is the best choice for smart home.
Low ripple and low noise.
Output overload short circuit protection function.
High efficiency and power density.
Low energy consumption. 100% load test.
Meet the requirements of UL, CE, EMC and safety testing requirements Quality guarantee of at least 10 years.
Specifications:
Meet UL, CE requirements,
All voltage input (AC: 90 ~ 264V)
Low ripple and low noise
Output overload and short circuit protection
High efficiency, high power density
The product is designed to meet the requirements of EMC and Safety Test
Low power consumption, environmental protection, no-load loss <0.1W
Operation Temperature: -20—+60°C
Store Temperature: -40—+80°C
Relative humidity: 5—95%
Rated input voltage:100-240VAc
Maximum input current: <0.2A
Input current surge: <10A
maximum input voltage: 270VAc
Input Low Voltage Efficiency: Vin=110VAc, Output full-load: 69%
Input High Voltage Efficiency: Vin=220VAc, output full-load: 70%
Long-term reliability: MTBF 100000h
Load rated output voltage: +5±0.1
Short-term maximum output current: 1000mA
The maximum output current for a long time: 600mA
Output ripple and noise: 50 mVpp Rated input voltage, full load. Using 20MHz of bandwidth, the load side with 10uF and 0.1uF capacitor
Shell maximum surface temperature does not exceed 60°C
