Product Overview:

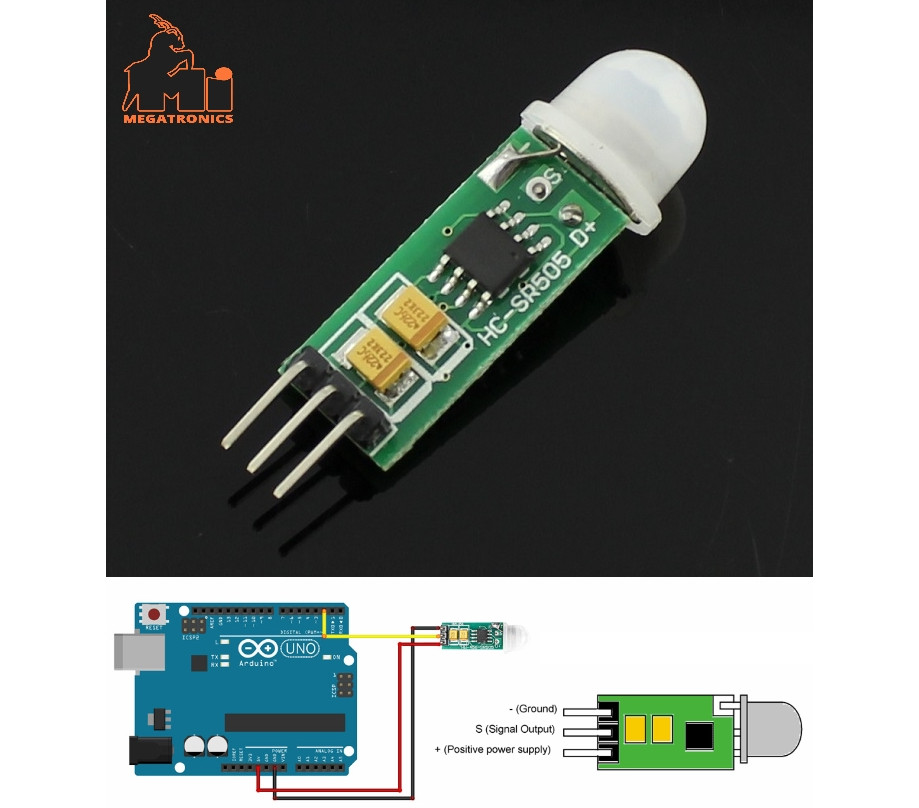

HC-SR505 small body sensing module is based on infrared technology, automatic control products, high sensitivity, high reliability, ultra-small, ultra-low-voltage operation mode. Widely used in various auto-sensing of electrical equipment, especially battery-powered automatic control products.
Technical parameters:
1. Operating Voltage Range: DC4.5-20V
2. Static current: <60uA
3. Output level: High 3.3V / Low 0V
4. Trigger: repeatable trigger (default)
5. Delay time: 8S +/-30%
6. PCB Dimension: 10 * 23mm
7. Induction angle: <100 degree cone angle
8. Induction distance: 3 meters
9. Working temperature: -20 - +80 degrees
10. Sensor Lens Dimensions: Diameter: 10mm (default)
