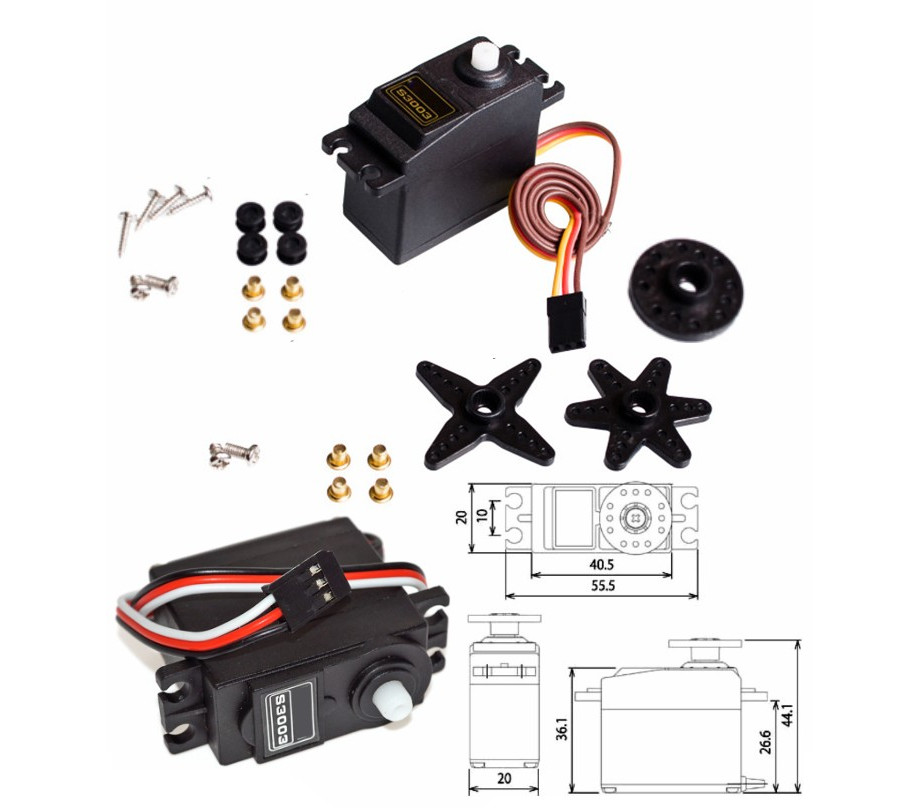

S3003 standard steering gear, used in remote control models such as cars and boats, can replace Futaba's S138, S148, S22, S38 and S12
Plug type: JR, FUTABA and other general.
Rotation angle: 180 degrees.
Actuator type: Simulation of steering gear.
Working current: 100mA.
Standard parameters: comprising:
Weight: 38g 1 x 38g standard servo
speed (4.8V): 0.12sec / 60 ° 1 x Cross servo arm
torque (4.8V): 3.5 kg / cm 2 x damping washer
Temperature range: -30 to +60C 4 x steering gear mounting screw
servo line length: 27cm
voltage range: 4.8-6.0V
