Fingerprint sensor finger recognition module ZN600 TM1026M Capacitive with chip Research price

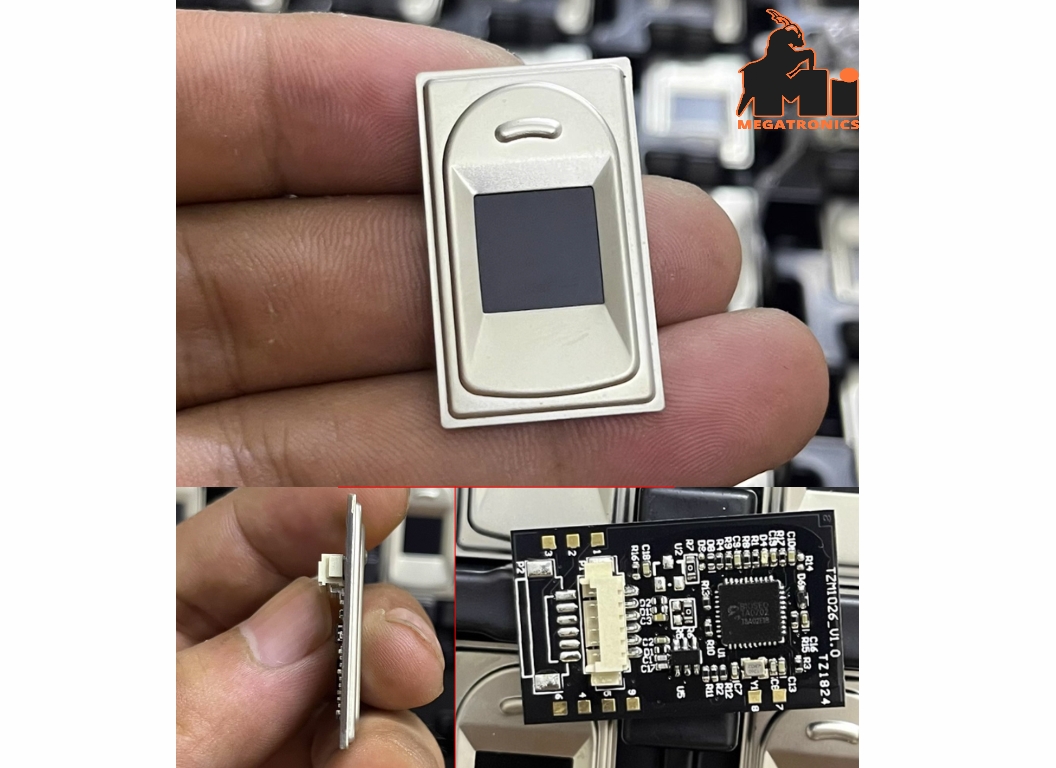

TM1026M is complete set of fingerprint module which combining sensor, MCU and algorithm on one PCB board, Biosec own all the intellectual property of sensor and MCU and algorithm
- Featuring high integration and adaptation, it isan optimization of the overall solution
- Algorithm adapts to the hardware perfectly with high system stability
Applications: door lock, safe box, access control, attendance check, smartphone, watch, automobile, padlock, USB flash, luggage, lighter and notepad
SM-66H1 is an Inexpensive,compact,power efficient integrated fingerprint module with adopted capacitive sensor and Miaxis's high speed fingerprint authentication algorithm. It has all essential components to support fingerprint identification purpose,ideal for Lock and Safe industry.
The ZN-600 semiconductor fingerprint module is an integrated fingerprint processing module that integrates a semiconductor sensor and a fingerprint algorithm chip. It includes some characteristics like small size, low power consumption, simple interface, high reliability, good adaptability to wet and dry fingers, and fingerprint search speed fast.
Specifications:
1. When the fingerprint image is reading, it has sensitive response and judgment to dry and wet fingers, and can obtain the best imaging quality, and is suitable for a wide range of people.
2.With self-learning function, the more you use it in actual use
3. The ZN-600 module also has an inductive finger function. When the finger is pressed to the fingerprint collection surface, the module touch pin outputs a high level.
4. The ZN-600 module communication interface is a UART interface. This module acts as a slave device, and the master device sends relevant commands to control it.
5. The module has an adjustable security level function and reads/writes the function of fingerprint feature data.
Features:
Voltage: DC 3.3V
Pin Pitch: 1.27mm
Interface: UART
Size: 34mm x 20mm
Pinout:
VADD: Touch-sensitive power input, +3.3V
Touch: Induction signal output, default high level effective
VDD: Module power supply positive input, +3.3V.
TX: Serial data output. TTL logic level.
RX: Serial data input. TTL logic level.
GND: Signal ground. Internally connected to the power ground
Integrated Fingerprint Module FEATURES:
508 dpi capacitive sensor
Compact design (board size as small as sensor size) for volume-limited applications
Extra low power-consumption
Sleep mode current less than 5uA
Touch wake-up function
