ESP32-CAM camera module ESP32S Wifi Bluetooth OV2640 2mp camera
WiFi Bluetooth Development Board with Camera Module OV2640
Fully compliant with WiFi 802.11b/g/n/e/i and Bluetooth 4.2 standards
It can be used as a master mode to build an independent network controller, or as a slave to other host MCUs to add networking capabilities to existing devices

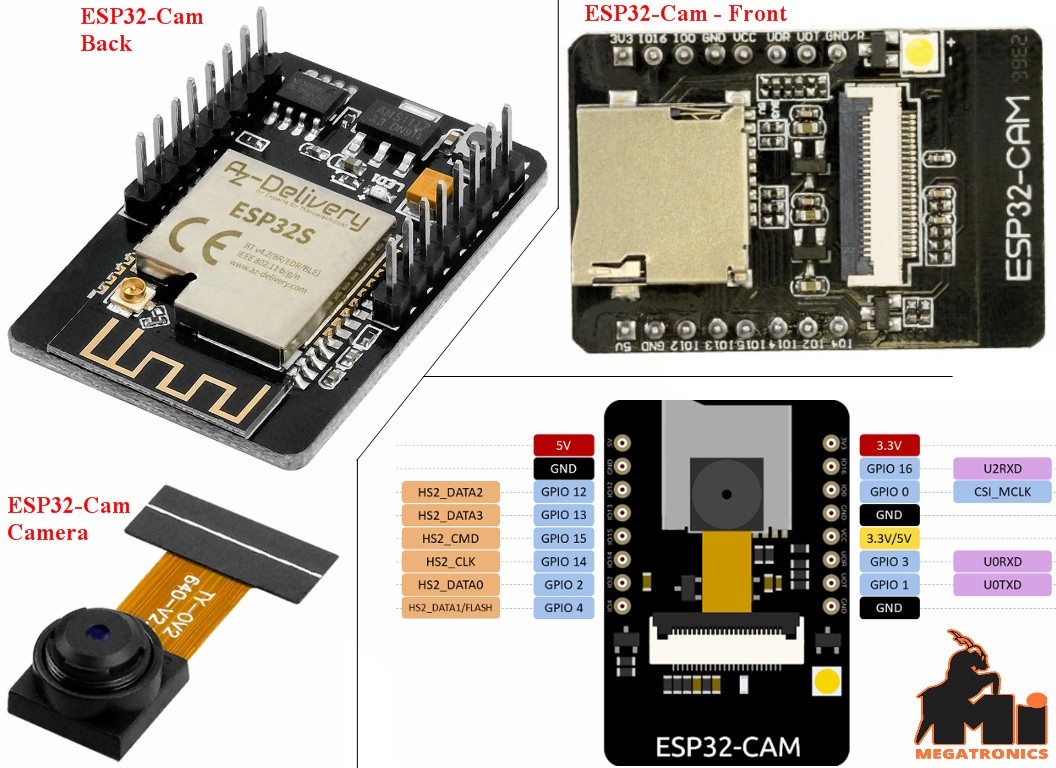

The ESP32CAM is a tiny module based on ESP32 chip and OV2640.
You can even program the ESP32CAM through the ESP-IDF by installing the ESP32 Core
Key Features:
Onboard ESP32-S module with WiFi + Bluetooth capability
OV2640 camera with built-in flash
microSD slot supports up to 4GB TF card for storage
Supports WiFi video monitoring and image upload
Low power modes with deep sleep current as low as 6mA
Accessible control interface for easy integration, ideal for projects
Ultra-small 802.11b/g/n Wi-Fi BT/BLE SoC module
Low-power dual-core 32-bit CPU for application processors
Up to 240MHz, up to 600 DMIPS
Built-in 520 KB SRAM, external 4M PSRAM
Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
Support OV2640 and OV7670 cameras with built-in flash
Support for images WiFI upload
Support TF card
Support multiple sleep modes
Embedded Lwip and FreeRTOS
Support STA/AP/STA AP working mode
Support Smart Config/AirKiss One-click distribution network
Support for serial local upgrade and remote firmware upgrade (FOTA)
Support secondary development
Note:
1.Please ensure that the module input power is at least 5V 2A, otherwise the image will unstable.
2.ESP32 GPIO32 pin controls camera power. When the camera is working, please pull GPIO32 low.
3.Since IO0 is connected to the camera XCLK, please leave IO0 floating when using it. Do not connect high and low level.
4.The factory has the default firmware, no additional download is available. Please handle it carefully if you need to re-burn other firmware.
Package Included:
1 x ESP32-CAM Module
1 x Camera Module OV2640 2MP
