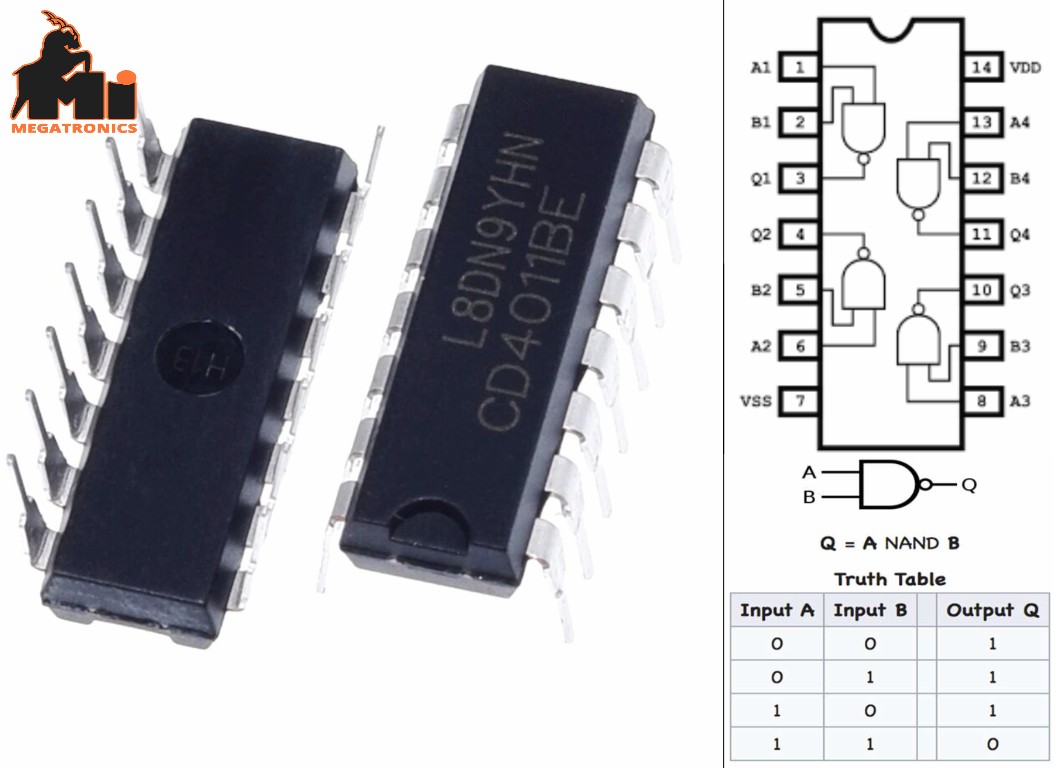

CD4011 is a 2-input 4 NAND gate IC, serving in many electronic circuits. CD4011 performs the Logical NAND function.
When you want to use it as a logic inverter, NAND gates in this chip are reconfigurable to function as a NOT gate.
It can be used where high-speed NAND operation is necessary.
This chip has a low transition time which is needed for high-speed applications.
Key Features
Propagation delay time = 60 ns (typ.) at CL = 50 pF, VDD = 10 V
Buffered inputs and outputs
Standardized symmetrical output characteristics
Maximum input current of 1 µA at 18 V over-full package temperature range; 100 nA at 18 V and 25°C
100% tested for quiescent current at 20 V
5-V, 10-V, and 15-V parametric ratings
Noise margin (over full package temperature range:
1 V at VDD = 5 V
2 V at VDD = 10 V
2.5 at VDD = 15 V
Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of "B" Series CMOS Devices"
