CA-1235 Adjustable step down Buck converter 1.25V 1.5 1.8 2.5 3.3 5V Output 3A 5V-16V Input
The CA-1235 Universal Adjustable Step-Down Power Module is a DC-DC buck converter designed to step down a higher DC voltage to a lower, adjustable output voltage.
It is commonly used in various electronic projects and power supply applications where precise control over output voltage is required.
This adjustable module uses MP1495 chip, synchronous rectification output, power efficiency of more than 90%, non-commercial similar linear regulated power supply comparable.

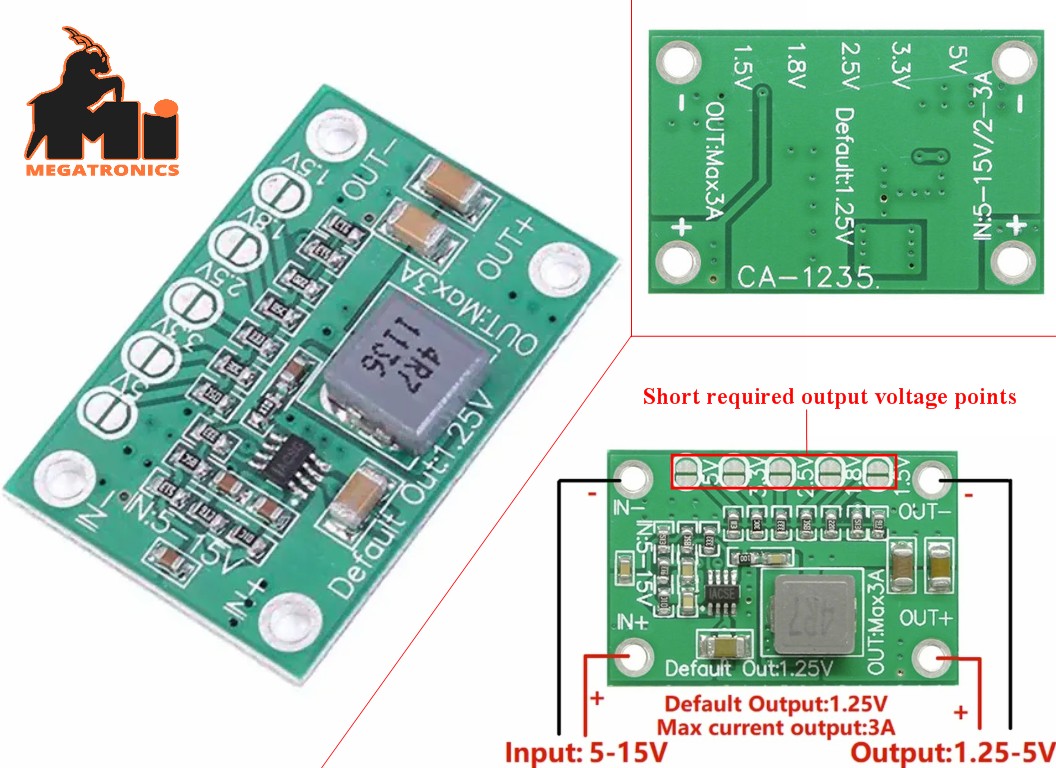

5-16V voltage input, 1.25V 1.5V 1.8V 2.5V 3.3V 5V output, 3A current output, short circuit point to adjust the output voltage (to avoid the phenomenon that the same type of potentiometer can be adjusted on the market), the default output voltage is 1.25V. Suitable for the replacement of various LCD TV small signal power supply repair, three lines to get power supply repair.
Specifications
Input Voltage: 4.5V to 40V DC.
Output Voltage: Adjustable, 1.25V to 35V DC.
Output Current: Up to 3A (with appropriate cooling).
Efficiency: Up to 92%.
Switching Frequency: Typically 150kHz.
Load Regulation: ±0.5%.
Voltage Regulation: ±0.5%.
