Auger feed motor DC 24V 20rpm full metal gearbox high torque 8kg.cm waterproof gear motor
auger-style unloading motor with all-metal gears and a 37mm outer diameter (OD) center-exit shaft (37GA) reduction gearbox. It also comes with a waterproof plastic cover.
It operates at 24V DC, has a load speed of 20 rpm, and a rated torque of 8 kg/cm.
This is the third generation of the motor.
While the motor's electrical performance remains the same, it offers improved waterproofing and a thicker, 10mm square cylindrical output shaft.
The manufecturing company is a well-known company in the industry for producing brushless reduction motors for robots. Products from large companies are of very good quality.

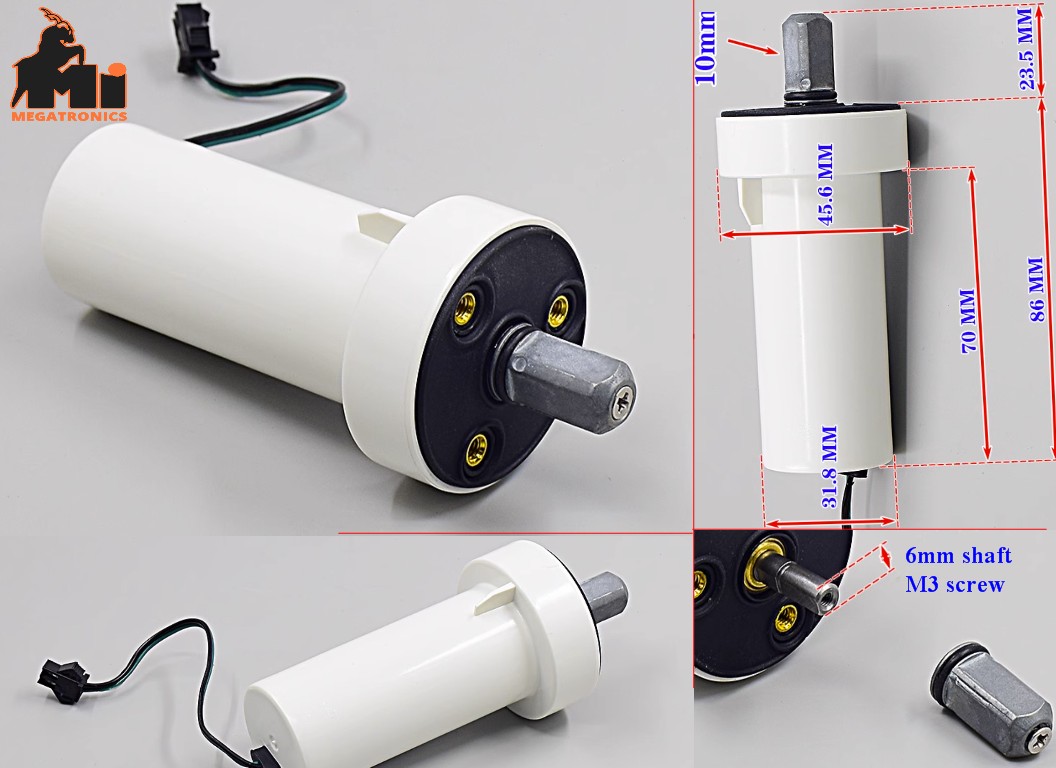

Motor outer diameter: 28.5 MM (including plastic sleeve)
Maximum outer diameter of reduction gearbox: 45.6 MM
Output shaft shape: 10*10 MM (square cylinder)
Output shaft length: 23.5 MM
Gear motor weight: 226 g
Voltage: DC24V
No-load current: 27 MA
No-load speed: 24 RPM (load speed is 20 RPM)
Torque:8 Kg.cm
After powering on the machine for a test run, the speed reducer motor makes a soft sound and has strong power. It is a product produced by a large company, with a beautiful appearance and good quality. There are not many speed reducers in this batch, so if you are interested, please act quickly.
