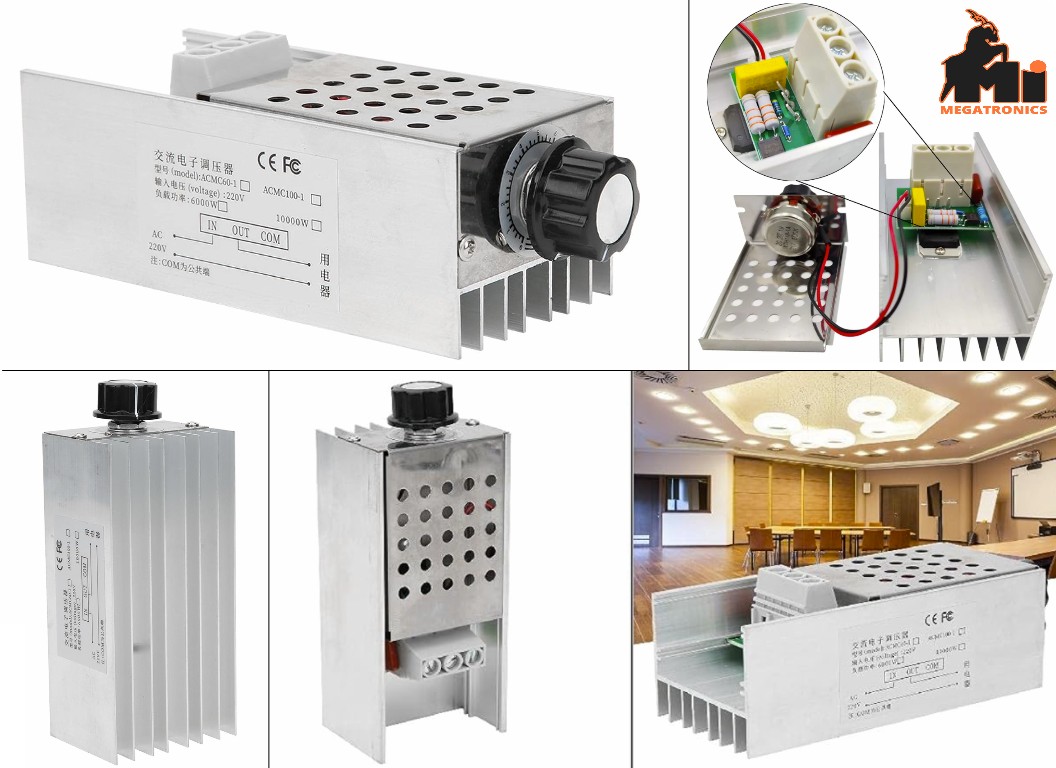

AC 220V 10000W SCR Super Power Thyristor Voltage Regulator speed controller Adjust Light Temperature
Voltage: AC 220V
Maximum power: 10000W resistive load limit power, it is recommended to use within 5000W for a long time at room temperature
Voltage adjustment: 0-220V starting at about 20
Size: 130*60*47mm, weight about 210g
The 10000W High Power SCR BTA100-800B Electronic Voltage Regulator Module For Speed Control Dimming & Thermostat increases the heat sink, more stable performance plus secure shell, more secure and reliable.
If you take a few 1000 W of power, the housing will heat (SCR 100A heat at around 70 degrees in normal). Preferably a self-imposed cooling fan.
Original 10000W Chips Thyristor Super Power Electronic Regulator Designed for Light Speed Temperature Adjustment It has a new two-way large power silicon-controlled rectifier and can handle up to 80A of current. As a result, it’s a viable solution for electric stove wire over-current produced by low resistance during cooling. It can easily alter the output voltage to power electric devices on a scale of 0-100 percent (nonlinear). The heat sink on these power thyristors is broad and thick, allowing for better heat dissipation. This voltage regulator is controlled by a button rather than a potentiometer, which makes it considerably more stable.The voltage regulator’s long life is ensured by the peak voltage absorption circuit, which protects the high-power thyristor. With 2-way high-power silicon control, these are extremely visible and handy devices. As a result, no external components are required. Water heater heat transfer, lights dimming, tiny motor speed, electric iron thermostat, and more applications employ SCR Voltage Regulators.
Applications
Used in big appliances with fewer than 10,000 watts of electric power. Because the power has been abundant, common household appliances or small factories are suitable for usage.
The new two-way high-power SCR, with a maximum current of 80A, is an ideal solution to the problem of over-current electric wire when cooling is insufficient to generate resistance.
For the usage of electrical appliances, easily modify the output voltage mains in any adjustment range from 0-100 percent (220V 100 adjustment points, non—). Electric furnaces, water heater heating, lights dimming, tiny motor speed control, and electric iron temperature control are just a few examples. As a result, the effects of dimming, temperature regulation, and pressure regulation can be achieved.
