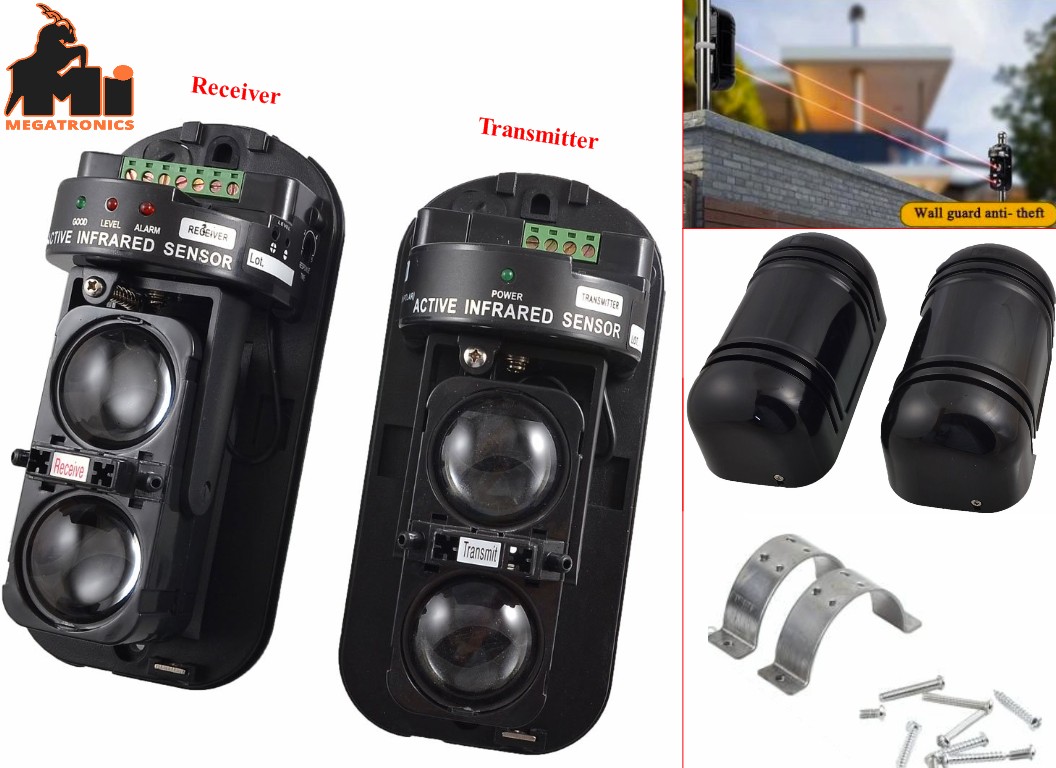

ABT-100 100m Dual Beam Photoelectric Infrared Detector Burglar Alarm Security System
Dual Beam Infrared Detection: The system is equipped with dual beam sensors that emit and receive infrared beams, enabling accurate detection of intruders attempting to breach the protected area.
Long Detection Range: With a detection range of up to 100 meters, this security system effectively covers large outdoor areas, providing comprehensive protection for your property perimeter.
High Sensitivity: The infrared sensors are highly sensitive to movement, ensuring prompt detection of intruders and minimizing the risk of false alarms caused by environmental factors such as wind or wildlife.
Adjustable Beam Alignment: The system allows for precise alignment of the infrared beams, enabling customization to suit the specific layout and requirements of your property.
Weatherproof Design: Constructed with weatherproof materials, the security system is designed to withstand harsh outdoor conditions, ensuring reliable operation in all weather conditions.
1. Intelligent power transmission: Independent development of the chip can automatically sense ambient changes (According to the environmental conditions to automatically adjust to the radio transmit power, greatly extending the life of the launching tube, while also lowering power.)
2. Cable, bus compatible, holographic spot real-time reporting.
3. Full-function diagnostics, environmental adaptive, fault lock.
4. Digital Fuzzy Artificial Intelligence Identification: Using artificial intelligence fuzzy judgments, false positives to a minimum.
5. Patent coaxial dual focal length precision optical aspheric focusing lens.
6. Dedicated DSP chip, patented multi-dimensional fault-tolerant, real detection alarm technology.
7. Optical lens up and down while structural adjustments, to adjust faster and more accurate.
8. Professional CPU chips, strong anti-interference
Specifications
1. Outdoor Distance: 100m
2. Indoor Distance: 300m
3. Beams: 2
4. Optical Source: Infrared digital pulse mode
5. Response Speed: 50-700ms
6. Alarm Output: NC&NO contact rating AV/DC 30V/0.5A
7. Alarm Output-bus: MA bus across wave carrier model
8. Input Voltage: DC 9-24V, AC 11-18V
9. Current: 65mA
10. OperationTemperature/Humidity: -25 degree C-60 degree C, 5%-95%
11. Crust Material: PC resin tin metal
12. Level Adjustment Axis: 180 degree +/- 90 degree
13. Vertical Adjustment Axis: +/- 10 degree
14. Tamper Output: NC contact rating AV/DC 24V/0.5mA
15. Housing Material: Polycarbonate
