Specifications:
Number of Cells: 2-3s lipo; 6-10 cell NiMh
Max Efficiency Current: 6-12A (>75%)
No Load Current (10v): .7A
Max Current: 16A/60s
Max Efficiency: 78%
Internal Resistance: 65mO
Shaft Size: 3.17mm
Poles: 14
Max Watts: 180w
Weight: 47g
Dimensions: 27.5x30 (mm)
Minimum Recommended ESC: 20A
Recommended Model Weight: 300-800g

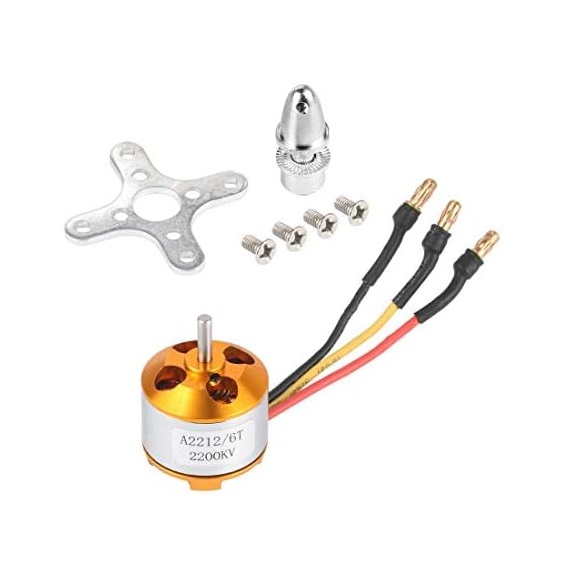

The motor features a 3.17mm hardened steel shaft, dual ball bearings, A bullet type prop adapter and cross motor mount are included in the package. Mounting holes have 16mm and 19mm spacing on centers and are tapped for 3mm (M3) screws.
We recommend the following setup for the motor:
3S LiPo setup for warbird, scale models and trainers:
3S LiPo, 1000-1800mAh according to aircraft weight,
25 or 30A ESC,
8x4 propeller.
2S LiPo setup for 3D airplanes and trainers:
2S LiPo, 1000-1800mAh according to aircraft weight,
25 or 30A ESC,
9x4.7 propeller.
