90A XT90 high current connector male female lipo battery Nylon Plug

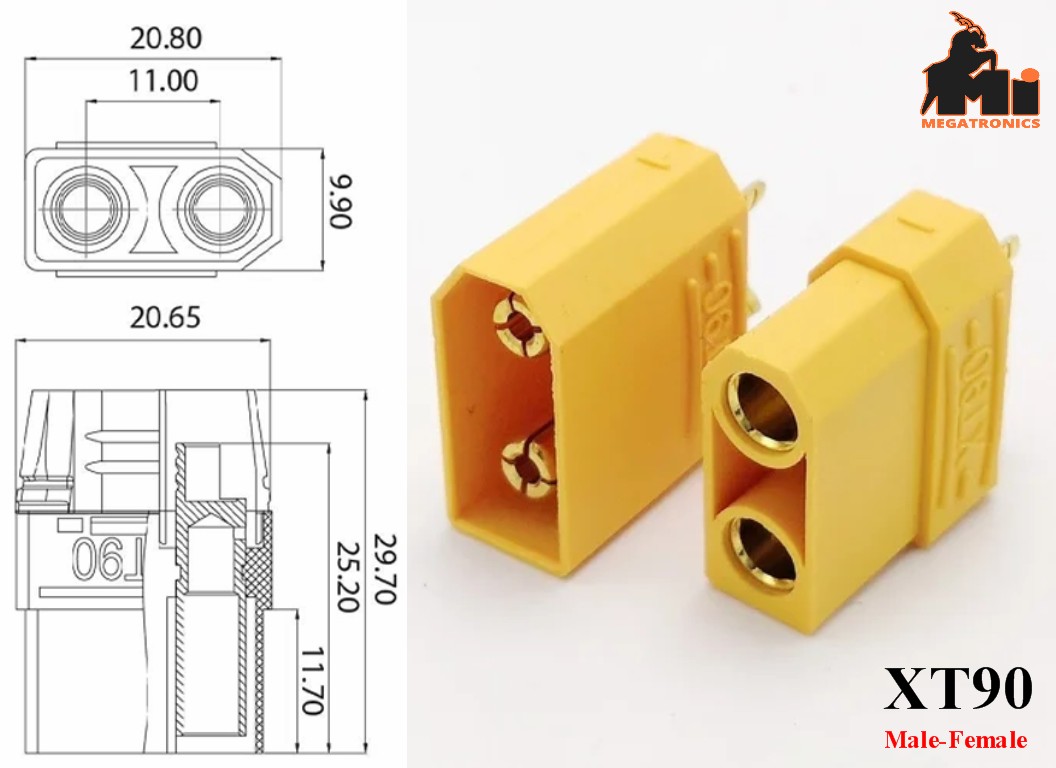

A set of XT90 connectors consisting of a male plug and female socket and protective covers.
The connector can conduct a continuous current of 45 A and a temporary current of 90 A, it will be perfect as a battery connector or a power connector in RC models.
It can be soldered on a wire or mounted on a printed circuit board.
It has gold-plated contacts and low resistance, which makes it characterized by good conductive properties.
The connector comes with protective covers to facilitate the isolation of soldered wires.
Made from high-temp Nylon and gold plated spring connectors, both included in the injection mould at the time when forming the connector.
The XT90 ensures a solid high-amp connection, perfect for applications up to and beyond 90A constant.
The XT90 offers a tight fit, ensuring a solid connection for minimal resistance.
This means that more power gets from your pack to your power system when compared to other plugs currently on the market.
Don't starve your high-amp power system, switch to XT90 connectors today!
Plug Type: 5mm gold bullet connector in nylon shroud
Current Handling: 90A+ (constant)
Weight: Male + Female plug: 12g
