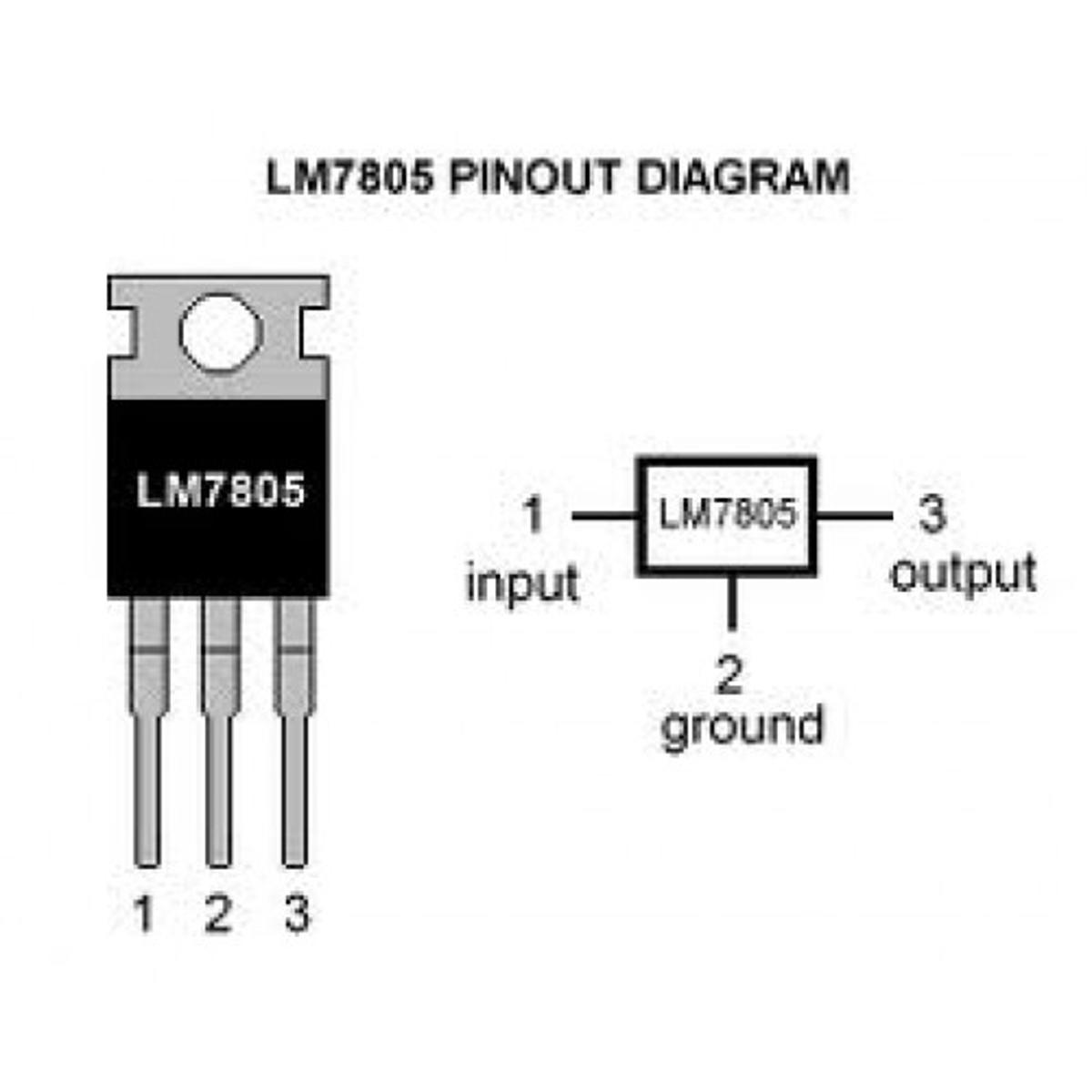

• lm7805 Positive Voltage Regulator IC
• This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications.
These applications include on-card regulation for elimination of noise and distribution problems associated with
single-point regulation. Each of these regulators can deliver up to 1.5 A of output current. The internal
current-limiting and thermal-shutdown features of these regulators essentially make them immune to overload.
In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain
adjustable output voltages and currents, and also can be used as the power-pass element in precision
regulators
• 3-Terminal Regulators
• Output Voltage: DC 5V
• Output Current up to 1.5 A
• Internal Thermal-Overload Protection
• High Power-Dissipation Capability
• Internal Short-Circuit Current Limiting
• Output Transistor Safe-Area Compensation
