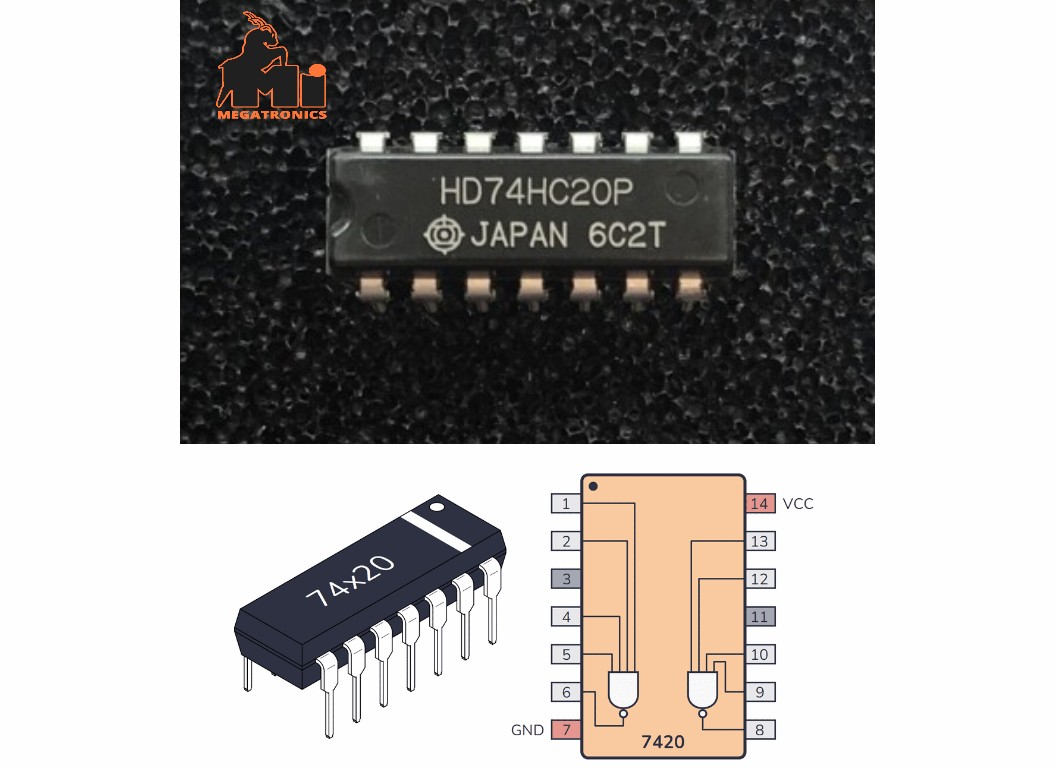

7420 74HC20 74LS20 Dual 4 input NAND gate IC logic gates DIP14 HD74HC20P
The 74×20 gives you two 4-input NAND gates that you can use individually.
A NAND gate is a logic gate that outputs 0 (LOW) only if all of its inputs are 1 (HIGH).
An easy way to remember what the result will be from a NAND gate is to think of the AND gate and to remember that the output will be the opposite.
For an AND gate, ALL inputs must be HIGH for the output to become HIGH.
So for the 4-input NAND gate, all of the four inputs must be HIGH for the output to become LOW.
74 Series Part: 74HC20
Product Category: Logic ICs, Logic Gates
Product: Single-Function Gate
Logic Function: NAND
Number of Gates: 2 Gate
Number of Input Lines: 4 Input
Number of Output Lines: 1 Output
Propagation Delay Time: 9 ns typ (CL = 50 pF)
Input Type: CMOS
Output Type: CMOS
Supply Voltage - Min: 2 V
Supply Voltage - Max: 6 V
Package / Case: PDIP-14, Plastic
Features
¦ High Speed Operation: tpd = 9 ns typ (CL = 50 pF)
¦ High Output Current: Fanout of 10 LSTTL Loads
¦ Wide Operating Voltage: VCC = 2 to 6 V
¦ Low Input Current: 1 µA max
¦ Low Quiescent Supply Current: ICC (static) = 1 µA max (Ta = 25°C)
